New 2-Row Mini Potato Harvester for Garlic and Carrot

Product Description

Product Description

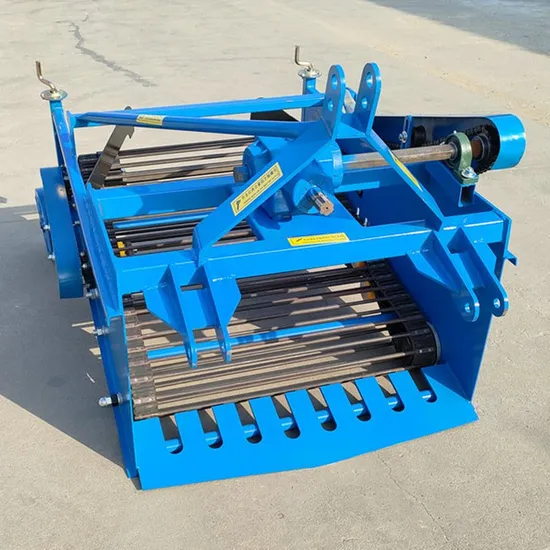

Agricultural machinery Tractor PTO Driven one row potato harvester

4U Potato Harvester is a new potato harvesting facility. This equipment can better adapt to the requirements of potato planting agronomic and growth characteristics in China. It can realize the functions of excavation, soil removal and laying. The whole process is smooth and the single ridge double ridge or single ridge single crop can be harvested. This machine is used for potato harvest, can greatly reduce the human demand, reduce the shortage of rural labor, reduce the cost of harvest operations. Advantages: 1. According to the need to adjust the vibration size, will support the rubber tire bolts, rubber wheel up, vibration becomes smaller, rubber tire down, vibration becomes larger.2. Chain drive device with overload protection, when the harvester overload, the main passive side of the friction between the slip, to protect the machine parts from damage. The overload torque can be adjusted by adjusting the nut. When the nut is rotated counterclockwise, the overload torque becomes smaller and the overload torque becomes larger when clockwise is rotated. Note that the adjustment of the three bolts should be consistent.3. Adjust the tractor's three-point suspension and limit the height of the wheel, and its lock, so that digging shovel excavation depth of 20 to 30 cm.


Features of use The potato harvester has good performance and high efficiency. It is mainly used for underground root crops such as potatoes, sweet potatoes, garlic, and radishes. It has the characteristics of high harvest rate, low damage rate, light and vibration-free operation, no grass blocking, fast soil leakage, simple structure, and long service life.
Suitable for soil types, sandy soil, sandy loam soil, medium clay soil
Special forced vibration system, good separation effect, strong adaptability, high recovery rate, low damage rate and quick cost recovery
Extracting the residual plastic film in the soil will not affect the growth of crops in the next season
The depth of entry into the soil can reach more than 25cm, and the matching power is 35-120 horsepower tractors
Ridge width model 60-180cm

Model	4U-60	4U-70	4U-80	4U-90	4U-130	4U-160
working rows	1row	1row	1row	1row	2rows	2rows
working speed	0.5-0.8ac/h	0.6-0.9ac/h	0.7-1ac/h	0.8-1.1ac/h	1-1.4ha/h	1.2-1.6ha/h
weight	200kg	220kg	240kg	260kg	320kg	400kg
matched power	22-35hp	25-35hp	25-40hp	30-45hp	40-80hp	50-80hp
working depth	300-500mm	300-500mm	300-500mm	300-500mm	300-500mm	300-500mm
working width	600mm	700mm	800mm	900mm	1300mm	1600mm
loss rate	<5%	<5%	<5%	<5%	<5%	<5%

Company Profile
Yucheng Dingshengyuan Machinery Manufacturing Co., Ltd. is a company specializing in the research and development and manufacture of agricultural machinery. The company has 55 employees and 30 sets of machining equipment. The main products are agricultural machinery (disc plow, disc harrow, harrow plow). , rotary tiller, subsoiler), planting machinery (wheat planter, corn planter, potato planter, vegetable planter), plant protection machinery (self-propelled sprayer, tractor piggyback sprayer, cultivator, pine soil machine, ridge machine, orchard sprayer), harvester (potato harvester, yam harvester, quarry machine, sugarcane peeler, small wheat straw harvester), forestry machinery (tree planter), forage machinery (reciprocating type) lawn mowers, raking mowers, disc mowers, spreaders), bucks, plows, scarifiers and other agricultural machinery and accessories. In addition, the company also undertakes various processing business with drawings and samples. We are deeply loved by our customers for our thoughtful service, exquisite craftsmanship and reliable product quality. The products are mainly exported to more than 30 countries and regions such as South America, Africa, Russia and Southeast Asia. The company adheres to the management concept of "people-oriented, customer first", and adheres to the principle of customer first to provide services to our customers
Packaging & Shipping
Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air
potato seeder 3 point potato planter machine packed by Iron plate
1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.
Wooden Case or Iron Pallet.
2.The whole set of machines size are large as normal, so we will use Waterproof materials to pack
all of them. The motor, gear box or other easily damaged parts, we will put them into box.
We have a professional shipping department, they will try their best to save your container quantity.


Yucheng Dingshengyuan Machinery Manufacturing Co., Ltd. is a company specializing in the research and development and manufacture of agricultural machinery. The company has 55 employees and 30 sets of machining equipment. The main products are agricultural machinery (disc plow, disc harrow, harrow plow). , rotary tiller, subsoiler), planting machinery (wheat planter, corn planter, potato planter, vegetable planter), plant protection machinery (self-propelled sprayer, tractor piggyback sprayer, cultivator, pine soil machine, ridge machine, orchard sprayer), harvester (potato harvester, yam harvester, quarry machine, sugarcane peeler, small wheat straw harvester), forestry machinery (tree planter), forage machinery (reciprocating type) lawn mowers, raking mowers, disc mowers, spreaders), bucks, plows, scarifiers and other agricultural machinery and accessories. In addition, the company also undertakes various processing business with drawings and samples. We are deeply loved by our customers for our thoughtful service, exquisite craftsmanship and reliable product quality. The products are mainly exported to more than 30 countries and regions such as South America, Africa, Russia and Southeast Asia. The company adheres to the management concept of "people-oriented, customer first", and adheres to the principle of customer first to provide services to our customers
FAQ
1. The company's product quality guarantee period is one year. All parts of our products can be found in our factory. Also, we can offer you machine parts with the best price.
2. For large orders, we can send our engineers to your place for technical support. For individuals or organizations who want to become our distributors, we can provide good preferential policies.
Trade Assurance:
Order online and pay to the designated bank account for comprehensive protection.
*100% product quality guarantee: If the product quality does not meet the standards stipulated in your contract, Made in China will refund the amount you paid.
*100% on-time delivery guarantee: If your product is not delivered on time according to the contract, Made in China will refund your payment amount.
*100% Payment Protection: If the supplier violates the on-time delivery or product quality terms in the contract, Made in China will refund the payment amount you paid.
Q1: Are you a factory or trading company?
We are manufacturer with self-supported import and export right.
Q2: How can Itrust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, ourproducts have been exporting to a number of countries including USA, Thailand, Russia, Poland, Netherlands.Australia, Chile, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict'quality control and reasonable price, throughout is the pledge we to each customer.
Q3: Where is your factory located? How can Ivisit there?
Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients
are warmly welcomed to visit us!
Q4: How can Iplace an order from your website?
lt is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquirysection and leave us a message there with name, country and phone number, we will get in touch with you at the earliestYou can also e-mail us directly or join us on live chat for instantaneous answers
Q5: How can Imake the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice30% as prepayment and the balance when the goods are ready for shipping"Irrevocable L/C at sight could be also accepted
Q6: What's the Payment terms?
FOB the price of the implement without sea shipment costs.
'ClF,including the unit cost + marine insurance + Shipment charges to your destination port
'CFR, including the unit cost + Shipment charges to your destination port.
Q7: At which port do vou usually ship the good?
We usually ship goods via Qinadao Shanghai, Ningbo Tianiin port of China
Q8.How about the Warranty ?
12 months warranty from the time of the goods arrive at destination

---
