3.5m3 China Mobile Slf Loading Concrete Mixer Truck Good Quality Hy-350

Product Description

3.5m3 China Mobile Slf Loading Concrete Mixer Truck Good Quality Hy-350

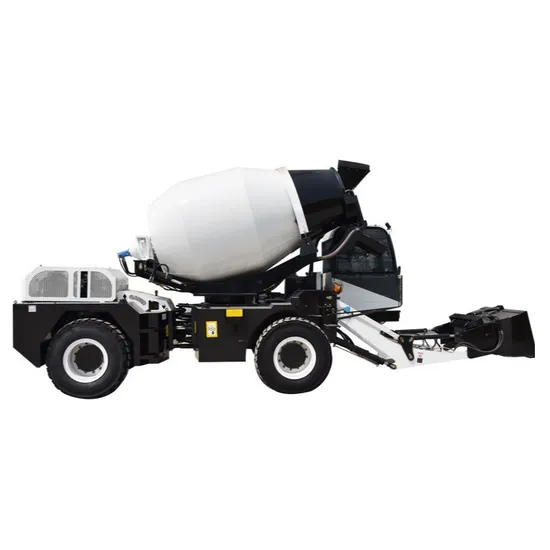

Model HY-3500 Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features bidirectional driving, which is realized by the 270 degrees slewing of drum. The concrete output ability is 14 cube meters per hour. The outsize wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 25 km/hour, and the min. turning radius is 5.3 meters only.
HY-3500 is equipped with driving camera, automatic water feeding & metering system, hydraulic water suction pump, and air conditioner, etc. The mixing drum can be slewed hydraulically through 270 degrees together for high discharge over 1.6m on the four sides of the vehicle. The drum can also be lifted up 16 degrees from the bottom by two hydraulic cylinders for the convenience of concrete discharge.1. The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
2. High strength steel plate, which enhances the load capacity and high stability of vehicle.
3. The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.
4. Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better Product Parameters

Main Parameter	HY-Series
Drum capacity	5.8cbm
Real concrete yield per batch	4.5cbm
Productivity	18CBM/H
Transmission	CVT
Tyre size	16/70-20
Engine	Yuchai YC6B125-T20
Model	Yuchai
	Water cooling
	92 kw
Speed Range	Low:0-8 KM/H
	High:8-25 KM/H
Discharge	270°,discharging concrete
JOYMIX	One joystick control main functions
Overall dimension(L*W*H)	7800×2500×3500mm
Weight	8000 KG
