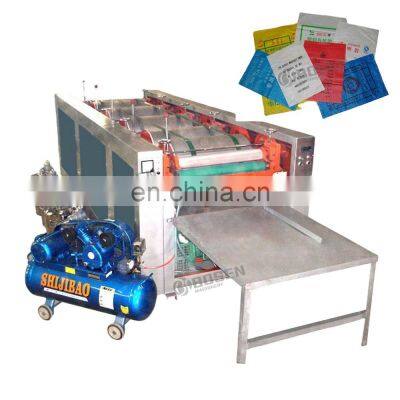

letterpress printing machineMachine Video: click to play
This video show you our 4colour PP women bag
to bag flexo printing machine working.
If you are interesting，please contact with us.
Printing machine could be used for printing materials as following:
1.Polyethylene, polyethylene plastic film bag
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag),
3.Roller paper and craft paper bag
4.Pp woven bag , pvc film, bopp film,
5.Laminated bag ,
6.Non woven bag,
7.Rice bag
8.Paper cup etc
Model
| BSY-800-II
| BSY-800-III
| BSY-13000-III
|
Max. Material Width
| 800mm
| 800mm
| 1300
|
Max. Printing Width
| 660mm
| 660mm
| 1100mm
|
Printing Length
| 200-1200mm,or customied
|
Print Colors
| 2 colors (also we have 1, 3, colors for your choices)
| 3 colors
| 3 colors
|
Print Speed
| 1000-2000pc/h
| 1000-2000pc/h
| 500-1000pc/h
|
Diameter of Cylinder roller
| Φ480
| Φ480
| Φ480
|
Main Power
| 1.5kw
| 2.2kw
| 4kw
|
Plate Thickness (including two-sided glue paper)
| 2.38mm, or customied
|
Machine Weight
| 1500kg
| 2000kg
| 2500kg
|
Overall Dimension
| 2700x1400x1300mm
| 3400x1400x1300mm
| 4500x2000x1500mm
|
Main Features
1. Easy operation, flexible starting, accurate Ppcolor register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7. The motor has inverter controller with different speed.
8. The electric board with buttons let machine operation be easy and effective.
9. Automatic laoding material, computer control is available.
Extra Optional Devices:
1) EPC web guider + Auto tension controller
2) Digital Corona Treater
3) Air Shaft
4) Computer control system for colour register
5) High speed
6) High exported brands parts
7)Ceramic anilox roller
8) Automatic material laoder
Detailed Images
Sample Photo
4 colors for printing non woven, plastic film, rice bag, woven bag, paper material see following:
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
Packing & Delivery
