High Quality Waste PP PE Plastic Film Crushing Recycling Line Recycling Machinery

Product Description

High speed waste plastic washing machine
Product Description
1. This waste plastic film washing machine is an ideal recycling system for PP/PE material, We have been a professional manufacturer of plastic recycling machines in China for many years. PE,PP Film Washing Line is also called PE, PP film crushing, washing,dewatering and drying line. We can supply production line with capacity from 300kg/h to 2000kg/h. The complete line includes crushing, floating washing, friction washing, dewatering and drying.
2. This waste plastic film washing machine is widely used in recycling plastic films like agriculture film, bags, PP woven bags and so on. With complete film washing line, clients can make dry,clean film scraps from waste material. The whole film recycling line could be "L" or "U" shape according clients' workshop.

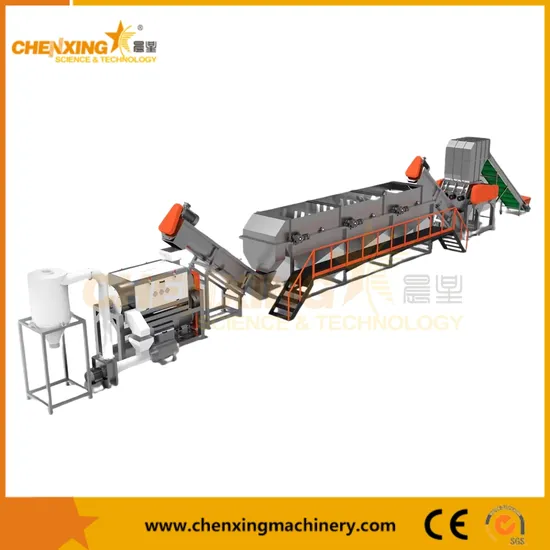

3. The brief working flow of PE PP film washing line is: belt conveyer → crusher → friction washer → float washer → dewaterer → dryer → silo. If the film is very dirty, some clients may add hot washer for this PE film recycling line.

Product Parameters

	200-300Kg/h	300-400Kg/hr	400-500Kg/hr	600-800Kg/h
Model and name	Power(KW)	Power(KW)	Power(KW)	Power(KW)
Belt conveyer	1.1	1.1	1.5	1.5
Crusher	22	37	55	75
Spiral conveyer	1.5	2.2	3	3
High speed friction washing	11+0.75	15+0.75	15+0.75	18.5+0.75
Washing conveyer	7.5	11	11	15
Floating washer	1.5+1.1+1.5	1.5+1.1+1.5	3+1.1+1.5	3+2.2+1.5
Spray washer	1.5+1.5	2.2+2.2	3+3	3+3
Washing conveyer	11	11	15	15
dewatering	30	37	37	75
Cyclone storehouse
Length of line	24m	26m	26m	35m

Machine List	Function
Belt conveyor	Convey waste plastic into crusher
Crusher	With water,will cut waste plastic into small pieces
Screw feeder	Convey small pieces
High speed friction washer	Scrubbing material in high speed with water
Floating separator washer	Separate PP PE and PET,dirty according to specific density
Dewatering machine	High speed centrifuge drying
Pipeline dryer	Electric heating wind drying
Storage silo	Store the final material

Detailed Photos

More Products for Options

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.


FAQ
Q: Are you factory or trading company?
A: We are a manufacturer professional in the plastic machinery industry over 20 years.
Q: How can you guarantee your quality?
A: We test each machine before delivery to ensure that it is in perfect condition.
Q: Do you have any after-sales service?
We offer 12 months warranty period. During this period, we can provide parts for free due to manufacture quality issues, human error is not included.
