Semi-automatic Jacquard Loom

Product Description

Product Description

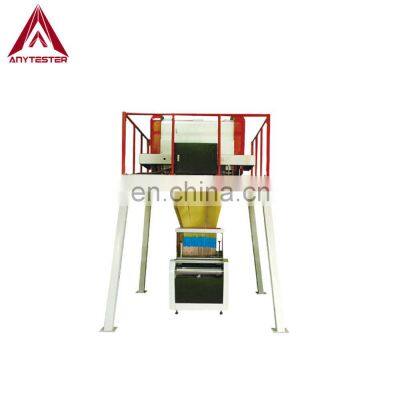

ApplicationSemi-automatic Jacquard LoomAT246J Semi-Automatic Jacquard Loom is designed to weave a wide variety of jacquard fabrics. It is applicable for yarns of cotton, wool, silk, linen, chemical fiber or blends. It consists of control part and mechanical part. The control part includes microcomputer and IPC control while mechanical part includes pneumatic element, approach switch and step motor. The whole machine consists of electronic jacquard head, manual let-off, manual weft insertion, manual beat-up and manual take-up. Details and Features★ Smooth and reliable operation;★ Semi-automatic jacquard loom applicable to a wide range of fabrics from light weight to middle thick, from low density to high density;★ Dramatically lower the maintenance, labor and electricity costs.Technical specificationItemAT246JWidth20’’Number of needles1408Shedding methodElectronic jaquard sheddingPattern input modeCAD jacquard design softwareControl methodSame operating system for control jacquard head and semi-automatic weaving loom togetherLet-offManualWeft-insertionManualWeft color selectionManualBeat-upManualTake-upManualPower supplyAC220V 50Hz, single-phaseOur CompanyPacking & DeliveryPakegingPakeging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.Contacting Us
