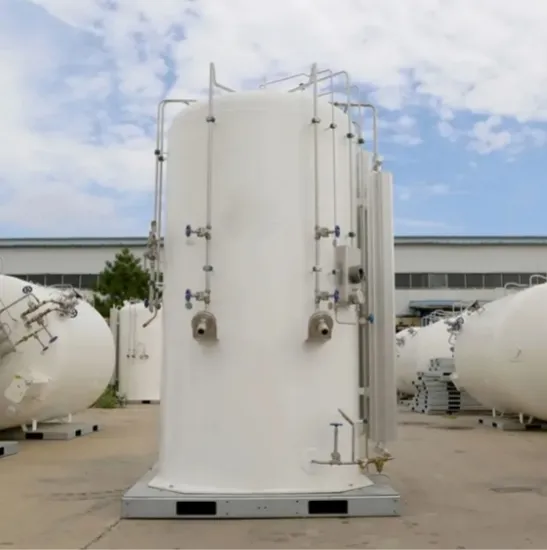

Vertical LNG Storage Cryogenic Gasification Station Liquid Natural Gas Storage Tank

Product Description

Company Profile
Our factory has a professional technical team and advanced welding technology. We have engaged in R&D of Normal Temperature Storage & Transportation Equipment, Cryogenic Storage & Transportation Equipment, Chemical Equipment and other types of Energy/Chemical Storage & Transportation Equipment, and Oil & Gas Industry Pipeline EPC Services since 2005. Owing to the advanced technology, we guarantee the highest quality by controlling and supervising every detail.
LPG storage and transportation equipment has been distributed to more than 40 countries and areas in America, the Middle East, Southeast Asia, Northeast Asia, and Africa.
Product Description
Cryogenic storage tank description
Cryogenic storage tanks which are designed and manufactured by HUAYAN are strictly in accordance with national standards, such as ASME, CE, GB150, GB18442, etc. These tanks with various working pressure and spec can be widely used in the storage and usage of liquefied natural gas, oxygen, nitrogen, argon, carbon dioxide, ethylene, etc. For Micro-tank, the volume ranges from 1m3~7.5m3, working pressure ranges from 1.6Mpa~3.6Mpa. For the standardized cryogenic tank, volume ranges from 5m3~150m3, working pressure ranges from 0.8Mpa~1.6Mpa. The cryogenic storage tanks have adopted special high vacuumed thermal insulation technology, which ensures excellent thermal insulation performance, enduring vacuum maintenance, lower use-cost. Modularized pipeline design and advanced configuration highly improves the performance and endurance, decreases the maintenance cost, enhances you competitive advantage. It is capable of customizing cryogenic storage tanks with a volume up to 200m3 or even higher in accordance with customers' requests, and we are able to supply various equipment such as vaporizers, pressure regulating & metering skids, buffer tanks, combined pressure regulating device, (PCM)PLC control system( unattended operation), EPC turnkey projects.

Condition:	New
Capacity:	10m3-200m3
Place of Origin:	Jiangsu, China (Mainland)
Product Name:	100m3 Cryogenic Storage Tank for LNG/LOX/LIN/LAr with ASME/GB standard
Model Number:	VT Series
Weight:	1-100t
Certification:	ASME, GB150,CE
Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas
Brand:	HUAYAN
Product Type:	Storing Liquefied Industrial Gases
Working Pressure:	4bar to 25bar or Customizable
Type:	Vertical and Horizontal
Lead Time:	30 days to 90 days
Insulation:	Vacuum and powder
Material:	Stainless steel/ Carbon steel
Medium:	liquefied natural gas, oxygen, nitrogen, argon, carbon dioxide, ethylene, etc.

Product Parameters
ALL CAN BE CUSTOMIZED AS REQUESTED, PLEASE CONTACT US
https://jshuayan.en.made-in-china.com/contact-info.html

LNG Cryogenic Storage Tank Technical Specification
Geometric Volume	Geometric Volume	Work Pressure (MPa)	Liquid Gases Weight (kg)	Tare Weight (kg)	Inner vessel	Outer vessel	Overall Dimensions (mm)
Vertical	10	≤0.80	3829	4012	SS30408	SS30408/Q345R	5800*2112*2196
		≤1.60		4112
		≤2.30		4527
		≤3.45		5360
	20	≤0.80	7916	7441	SS30408	SS30408/Q345R	10320*2196*2196
		≤1.60		7921
		≤2.30		8696
		≤3.45		10251
	50	≤0.80	20235	14221	SS30408	SS30408/Q345R	5975*2135*2077
		≤1.60		16860
Horizontal	10	≤0.80	4043	4112	SS30408	SS30408/Q345R	6080*2362*2200
		≤1.60		4203
		≤2.30		4679
		≤3.45		5634
	20	≤0.80	7915	5238	SS30408	SS30408/Q345R	10495*2362*2200
		≤1.60		5329
		≤2.30		6182
		≤3.45		7894
	50	≤0.80	20235	16396	SS30408	SS30408/Q345R	11200*3200*3500
		≤1.59		19587
Note: The above technical parameters may be changed without prior notice due to modification and development. If there is any change, please refer to the confirmed drawing.

Detailed Photos
Packaging & Shipping
FAQ
1. What is your daily production capacity?
Our production capacity every year is 80~100 units.
2. What products can you provide? We specialize in offering a wide range of cryogenic storage tanks, such as LCO2, LAr, LNG, LPG, LOX and so on . 3. May I have the best price from you? Sure. We are always on the way to promoting our product price and service competitive 4. Do you provide a one-stop service so I can save my time and labor? You will own a professional team in China by cooperating with HUAYAN. 5. What's The Time For Delivery & Arrival?
If the standard models are in stock, then we can ship them out within 30 days after payment.If customized, 40 days can be ready for shipment.

---
