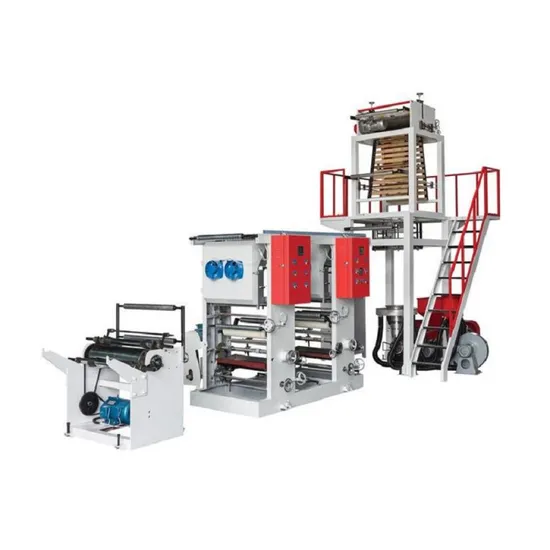

High Performance Film Blowing Gravure Printing Connect Machine for Shopping Bags

Product Description

High Performance Film Blowing Gravure Printing Connect Machine for Shopping Bags
Product Description
Product Overview:
The unit is used to blow plastic films with LDPE, LLDPE and HDPE as raw materials, and widely used for packaging food, apparel & textile, daily necessities and industrial supplies.
This machine configuration is standard and is suitable for customers with a limited budget.
Printers can choose between water-based or oil-based inks. The film blowing machine and printing machine are connected together, saving space and staff costs for the customer and making operation easier.
The printing machine can print on one or both sides of the bag only.
Application: T-shirt bags, shopping bags etc.
Suitable material: HDPE / LDPE / LLDPE / EVA/ Caco3
Film layer: 1 layer
Screw L/D ratio: 30:1 / 32:1
Product Parameters

Model	XY50-600	XY55-800	XY60-1000	XY65-1200
Suitable material	HDPE / LDPE / LLDPE / EVA/ Caco3
Film width	100-600mm	200-800mm	300-1000mm	400-1200mm
Roller width	700mm	900mm	1100mm	1300mm
Printing length	250-1000mm	250-1000mm	250-1000mm	250-1000mm
Number of colours printed	1 - 4 Color
Film thickness	0.01-0.15mm
Max.output	55kg/h	65kg/h	75kg/h	85kg/h
Screw diameter	Φ50	Φ55	Φ60	Φ65
Screw L/D	30:1	30:1	30:1	30:1
Driving motor	15kw	18.5kw	22kw	30kw
Gearbox	146	173	173	180
Die size	Φ60	Φ80	Φ100	Φ120
Weight	2500kg	4000kg	4300kg	4600kg
Machine outside	6x2.5x4.5m	6.5x2.8x5.0m	7x3x5.2m	7.5x3.5x5.5m

Possible Product
Company Profile
Ocheng machinery equipment is subcompany of China YanFeng group ,which was found in 1987 .The company'existing plant area is 60000 square meters.It has advanced experimental test equipment and production line in the industry,In recent years,it has spent 30 million yuan to purchase more than 30 high-precision CNC machine tools,more than 200 various types of machine tools ,and fixed assets of more than 500 million yuan.

We specializing in R & D and manufacturing of various gear reducers, different types of chillers, film blowing machines, bag making machines, bubble film machines, printing machines, recycling machines ,motorcycle accessories and other machine assembly parts etc.we have got certificate such as ISO9001 and etc ,Who provide professional NON-STANDARD products with complete design and customization to satisfy your requirement.

We has gathered a batch of outstanding professional team with more than 10 years' experience in this industry. Adopting brand-new modulation, the productions of our company are featured by short delivery time, high performance and more stable operation.

Our products sell well all over the country and are exported to Southeast Asia, the Middle East, Central Asia, Russia, Europe, South America, North America, Africa, dozens of countries and regions, winning a good market response and customer reputation.

We pay close attention to internal management, after-sales service, scientific and technological progress and information. We continue to grow and develop at the same time.
FAQ
Q: Are you factory or trading company ?
A:We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.
Q: Where is your factory? How can i visit your company?
A:Our factory is located in wenzhou city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.
Welcome to visit our factory
Q: How long is your delivery time?
A:Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days
Q:What are your terms of payment?
A:We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight
Q: What package do you use for the product?
A:Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost.

Q:Does your factory provide installation service?
A:Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.
Q:What's your warranty policy?
A:12 month guarantee and whole life maintance.
Q: What is your company after sale service?
A:We would express the free replacement parts as soon as possible.

---
