Rectificadora / Small Universal Cylindrical Grinding Machine / Grinder

Product Description

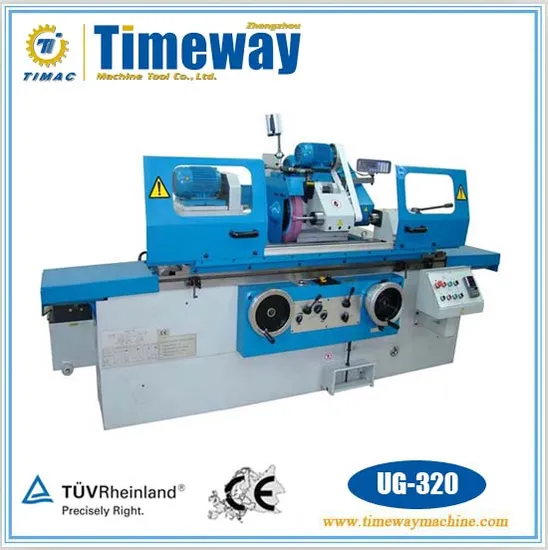

Small Universal Cylindrical Grinding

PART 1---Product Description

Standard Accessories:
Coolant tank, Wheel periphery dresser base (without diamond pen),
Flange and wheel extractor, Standard grinding wheel, Balancing arbor,
Working lamp, Leveling wedge, Open steady rest, Operation manual.

Optional Accessories:
Balance stand, Magnetic separator apparatus, Paper filter apparatus,
Center grinding attachment, Close steady rest, End wheel dresser,
Radius wheel dresser

Parameter:

Specification		Unit	UG-200	UG-320
* General capacity
Distance between centers		mm	500,750	1000/1500/2000/3000
Center height		mm	135	180
Dia.ground(O.D)		mm	5-200	8-320
DIa.ground(I.D)		mm	25-100	30-100
Max.length to be ground(O.D)		mm	500,750	1000 1500 2000 3000
Max.length to be ground(I.D)		mm	125
Max.weight of workpiece		kg	100	150
* Workhead
Swiveling angle		º	+ 90 º
Center taper(MT)		MT	4
Spindle speed		r/min	50HZ:25-380 stepless	50HZ:25-220 stepless
* Wheel head
Spindle speed of wheelhead		r/min	1670
Rapid travel of wheelhead		mm	50
Max.travel		mm	205	246
Swiveling angle		º	±10º	±30º
Hand feed per.rev		mm	rough:2 fine:0.5
Hand feed per.gra		mm	rough:0.01 fine:0.0025
Wheel size(ODXWXID)		mm	400×50×203
Peripheral velocity		m/s	35
* Internal grinding device
Spindle speed		r/min	10000 15000
Dimension of wheel		mm	Max.(50×25×13) Min.(17×20×6)
* Table
Hand feed per.rev		mm	6
Max.. swiveling angle of table	Clockwise	º	3º	3º(1000 1500),2º(2000,3000)
	Anticlockwise	º	9º(500), 8º(750)	7º(1000),6º(1500),5º(2000),3º(3000)
Longitudinal speed range of table		m/min	0.1-4
* Tailstock
Center taper(MT)		MT	4
Quill travel		mm	30
* Motor
Wheelhead motor power		kw	4	5.5
Internal grinding motor power		kw	1.1
Workhead motor power		kw	1.1	1.5
* Machine
Gross weight		T	4.1(500),4.3(750)	5.3(1000),6.1(1500),7.9(2000),9.9(3000)
Packing size(L*W*H)		cm		322×200×205(1000)
			235×203×205(500)	422×200×205(1500)
			275×203×205(750)	540×200×205(2000)
				739×200×205(3000)

PART 2 ---Our Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer).
Part 3---Company Information

"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
