US$310,000.00-410,000.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Coating Production Line
Layout of The Roll
L Type or F Type
Final Product Thickness
0.05-1mm
Final Product Width
1680mm
Color
Green,Blue,White,and So on
Power
75kw 90kw 90kw 75kw
Heating Method
Oil or Stream
Cutting and Winding
Include
Transport Package
Film Covering
Production Capacity
50 Sets/Year
Product Description

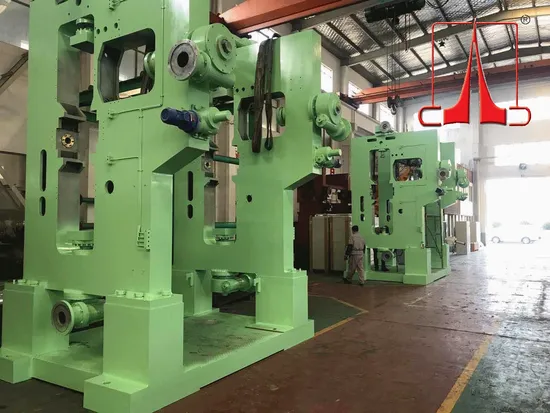

FOUR-ROLLER CALENDER
FOR PVC SHEET/ FILM/ FLOORING
Founded in 1992, Zhangjiagang Lanhang Machinery Co., Ltd. is a private enterprise integrating scientific research, production, marketing and service of plastic machinery into one complete whole.
Our "Lanhang" brand of planetary roll extruders, straining extruders, powerful horsepower dense mixers, mixing rolls, and high-speed mixers are the backbone of our company.
we sincerely welcome customers to cooperate with us to develop rewarding business partnerships.
Product Description
Features:
1. long service life
2. simple operation
3. good results
4. east maintence
5. convenient of worn-out parts
Application:
Mainly used for film,rigid sheet calendering
Main technical parameters
Project / Model | SY610x1900 | SY610x2030 | SY660x2500 | SY710x2800 |
| Roll specification (mm) | 610x1900 | 610x2030 | 660x2500 | 710x2800 |
| Layout of the roll | The pour L type |
| Roll speed (m/min) | 40-100 | 40-100 | 50-120 | 50-120 |
| Final product thickness (mm) | 0.08-1 | 0.08-1 | 0.08-1 | 0.08-1 |
| Rolled products Width (mm) | 1500 | 1600 | 2100 | 2300 |
| Main motor power (kw) | 200kw
(45kw 2 sets 55kw 2 sets) | 260kw
(55kw2sets 75kw 2sets) | 330kw (75kw 2sets 90kw 2sets) | 400kw (90kw 2 sets 110kw 2 sets) |
>>
