US$1,400.00-1,500.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
metal
Guide Rail
Horizontal Guide Rail
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
Max. swing over bed
420mm
Max. distance between centers
500mm
Spindle speed
160-1360rpm
Transport Package
Standard Plywood Pakcsge
Production Capacity
100 Sets/ Month
Product Description
Product Description

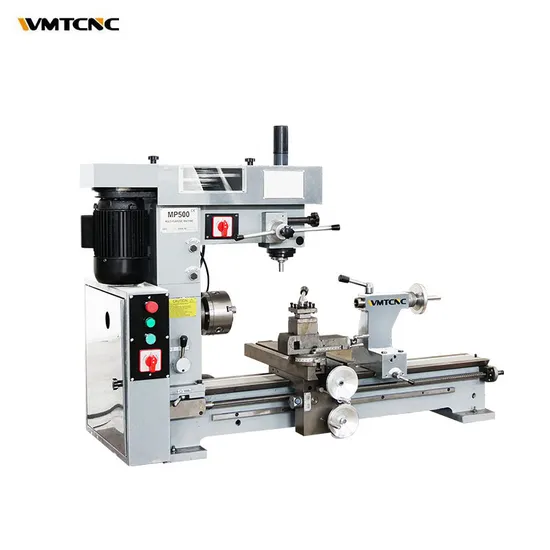

Main features of lathe mill combo MP500:
1. Turning, milling, drilling and threading.
2. Metric or imperial thread cutting.
3. Suitable for processing metal, wood and other materials.
4. Excellent advantage of various functions, small occupation and economic.
| Specification | MP500/800 |
| Max. swing over bed | 420mm |
| Max. distance between centers | 500/800mm |
| Max. longitudinal travel | 400mm/740mm |
| Max. cross travel | 200mm |
| Spindle taper | MT4 |
| Spindle bore | 28mm |
| Step of spindle speed | 7 steps |
| Range of spindle speed | 160-1360rpm |
| Barrel travel | 70mm |
| Barrel taper | MT3 |
| Metric thread range | 0.2-6mm |
| Inch thread range | 4-120T.P.I |
| Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014'' |
| Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014'' |
| Max. drilling capacity | 22mm |
| Worktable size(L×W) | 475×160mm |
| Max. end mill | 28mm |
| Max. face mill | 80mm |
| Distance between spindle center and column | 285mm |
| Distance between spindle and worktable | 306mm |
| Headstock travel of up and down | 110mm |
| Spindle taper | MT3 |
| Step of spindle speed | 16 steps |
| Range of spindle speed | 120-3000rpm |
| Swivel degree of headstock | ±360° |
| Motor power | 0.75kw |
| Packing size | 1130/1430×580×1100mm |
| N.w/G.w | 245/280kg 275/325kg |
Machine Show
Machine Details
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
>>
