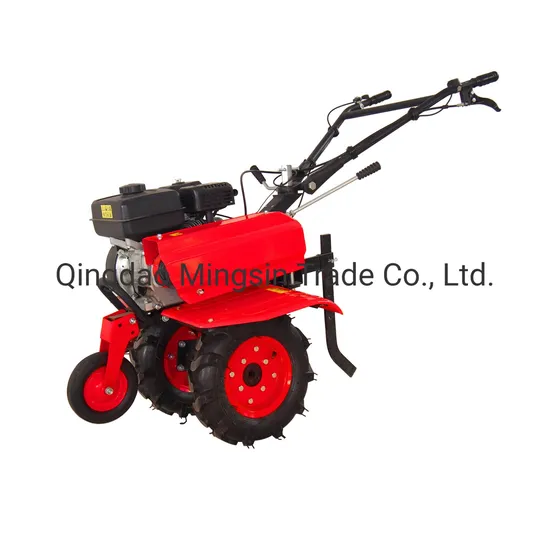

Farm Power Tiller, Cultivator, Mini Tiller, Model Gt500A/Gt900A

Product Description

Product Description
This power tiller is designed by our company based on all types of similar machines both at home and abroad. It adopts 6.5 horsepower gasoline engine and multistep gear transmission. The box is made of integral drawn steel plate, with the belt tension clutch, and handlebar adjustable in any position. It is in strong power, reliable performance, complete functions, high efficacy, and multiple purposes.
1.Type T lock handle :The handrail's direction can be adjusted at 360 degrees
2.Original gasoline engine: single cylinder, vertical 4 stroke,air cooled,HOV, a real 7HP gasoline engine. It features reliable and powerful.
3.Bumper:The engine can be effectively protected
4.Gear shift lever:This machine has 3 gears,2 forward gears and a reverse gear.You can adjust the different
gear by this lever.
5.Deep furrowing drag strut:You can adjust this to adjust the depth of the tillage.
6.Fender:The fender uses waterproof paint.the double fender's width can be adjusted according the blades length.
7.Tow-bar:It can be connected with trailer,furrow,etc.
8.Tyre/Blade: Tyre 3.50-6, 4.00-8, 5.00-12 are optional. Blade It can be equipped with dry land blade, paddy wheel and anti-wrap blade,etc.
Product Parameters

GT900A Gasoline Power Tiller
Tiller	Model	GT900A
	Transmission	Chain transmission (belt)
	Clutch	Belt tension
	Gear box	Cast iron gearbox
	Gear shifting	-1,0,1,2
	Tillage depth	150-300mm
	Tillage width	800-900mm
	Productivity (hm2/h)	0.04
	Wheel	400-8
	Blades	3pcs 4group, 24blades
	N.W/G.W	60/65KG
Engine	Engine model	170F/P
	Engine Type	Gasoline engine,single cylinder,4 stroke, air cool
	Displacement	208cc
	Bore&stroke	70*55mm
	Rated max power	4.0KW (7HP)/3600rpm
	Fuel tank capacity	3.6L
	Oil capacity	0.6L
	Starting	Recoil Start(hand start)
Other	Packing	Carton case /wooden case
	Dimensions	840*380*750mm
	20GP Container	126 Sets
	40HQ container	252 Sets

Detailed Photos
Gearbox:
Implements (optional ones except for tilling blades):
Structure:
1.Oil switch 2.Handrail frame 3.Handrail pedestal 4.Clutch switch 5. Emergency stop 6.locking handle 7.Gasoline engine 8. Gear shift lever 9.Deep furrowing drag strut 10.Belt shield 11. Bumper 12.Fender 13.Front wheel 14.Drive box 15.Tyre/Blade
Company Profile
Packaging & Shipping
After Sales Service
FAQ
Q1: Are you a factory or trading company?
We have our factory for the farm machines and we also have our own trading company with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc.
Q3: Where is your factory located? How can I visit there?
Our factory is located in Linyi City, Shandong Province, China. About 1 hour away from Linyi Airport, 4 hours away from Qingdao airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest.
Q5: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance when the goods are ready for shipping.
Q6: What's the Payment terms?
T/T, L/C or some other ways payment method.
Q7: At which port do you usually ship the good?
We usually ship goods via Qingdao port of China.
Q8. How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.

---
