High precision Z3132 Universal Radial Drilling Machine

Product Description

High precision Z3132 Universal Radial Drilling Machine
Product Description
Product Parameters
Technical specifications:

Specifications		Z3132
Max.drilling diameter		32mm
Spindle center to column surface	max	815mm
	min	315mm
Spindle box horizontal movement		500mm
Spindle nose to base	max	870mm
	min	25mm
Spindle rotary angle		360°
Spindle rotary angle round horizontal line perpendicular to the column		360°
Spindle rotary angle round the column		360°
Radial arm lifting speed		1.51m/min
Spindle box travel in column		845mm
Spindle taper		NO.4
Spindle travel		130mm
Spindle speed		86.5,173 ,212.5,425,343,686,480,960r/min
Base table size		710×500mm
Main motor power		1.5kw/2.2kw
Machine weight(apporx)		850kg
Machine size(L×W×H)		1800×700×2044mm

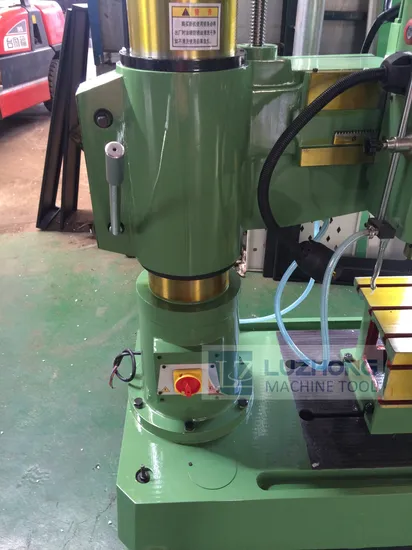

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
