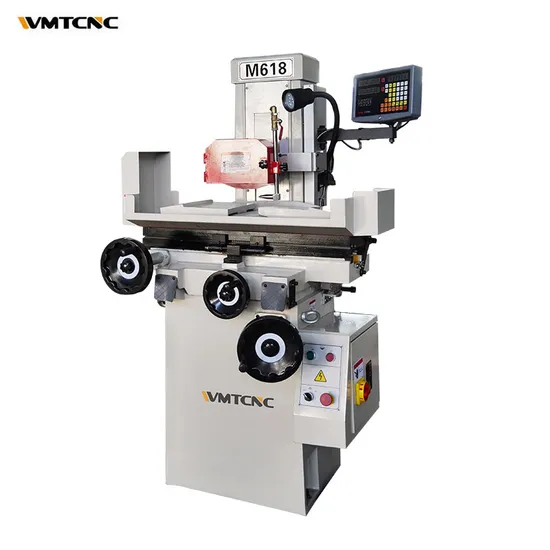

WMTCNC surface grinding equipment M618 industrial grinder machine

Product Description

Product Description
WMTCNC surface grinding equipment M618 industrial grinder machine main features:
1. Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.2. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Specification			Unit	M618
Table maximum cutting area (LxWxH)			mm	500x190x335
Working table movement		Max. Grinding Length	mm	500
		Max. Grinding width	mm	190
Distance From Table Surface To Spindle Center			mm	335
Slide way				V-type rail with Steel-ball
Maximum work load			Kg	200
Table size			mm	460x180
Number of T -Slot			mmxn	14x1
Number of T -Slot			m/min	323
Front and rear wheel feed			mm	0.02/Graduation2.5/revolution
On the hand wheel feed			mm	0.01/Graduation1.25/revolution
Wheel Size(dia x width x bore)			mm	180 x 13 x 31.75
Spindle speed	50Hz		rpm	2850
	Variable frequency motor (matching)			0-6000
Spindle motor			Kw	1.1
Cooling pump			Kw	0.4
Packing Size (LxWxH)			mm	1240x1080x1680
Gross/Net			T	0.75/0.65

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
