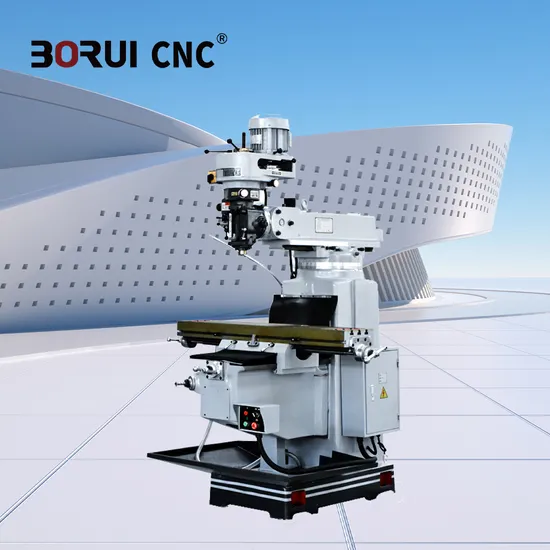

Turret Milling Machine (X6325A) Cheap Milling Machine

Product Description

X6325 nantong vertical turret milling machine china
Product Description

The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
The main feature :
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.
6. The working table and guide rail are heating treated and precision grinding.
7. DRO and dividing head are for option.
Product Parameters
The main specification :

SPECIFICATIONS OF TURRET MILLING MACHINE X6325
Item	Unit	X6325	X6325A	X6325B	X6325C	X6325D	XU6325
Table size	mm	254x1270 (10 254x1370 (10					250x1270(10
Longitudinal travel	mm	850 950					770
Cross travel	mm	380	380	400	400	400	400
Vertical travel	mm	400	400	400	400	400	400
T-slot		3x16	3x16	3x16	3x16	3x16	3x16
Distance from spindle nose to table	mm	0-400	0-400	0-400	0-400	0-400	0-400
Ram Travel	mm	470	470	470	470	470	470
Spindle taper		Standard: R8; Optional: ISO30/ISO40			ISO40		R8
Spindle travel	mm	127	127	127	127	127	127
Spindle speed	Rpm	Standard: 16-steps, 50Hz 66-4540; 60Hz 80-5440
		Optional: Variable 60-4200			Variable 60-3600		60-4200
Spindle feed		3-steps: 0.04/0.08/0.15 mm/rev
Main motor	kw	2.25/3HP	2.25/3HP	2.25/3HP	3.75/5HP	3.75/5HP	2.25/3HP
Head Swivel (Right-Left)		90°	90°	90°	90°	90°	90°
Head Swivel (Front-Back)		45°	45°	45°	--	45°	45°
Single milers package	mm	1516x1550x2080
Two milers package	mm	1650x1790x2170
Three milers package	mm	1650x2285x2235
Weight	kg	1450	1280	1320	1490	1490	1450

The Differences Between the X6325 Models
Model	Guideway	Milling Head
X6325	X axis dovetail guideway, Y/Z axis rectangular guideway	3HP Radial milling head (Right-left & Front-back)
X6325A	X/Y/Z axis dovetail guideway	3HP Radial milling head (Right-left & Front-back)
X6325B	X/Z axis dovetail guideway, Y axis rectangular guideway	3HP Radial milling head (Right-left & Front-back)
X6325C	X axis dovetail guideway, Y/Z axis rectangular guideway	5HP Radial milling head (Right-left)
X6325D	X axis dovetail guideway, Y/Z axis rectangular guideway	5HP Radial milling head (Right-left & Front-back)

Standard Accessories: 1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories: 1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice

Detailed Photos

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online , or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
