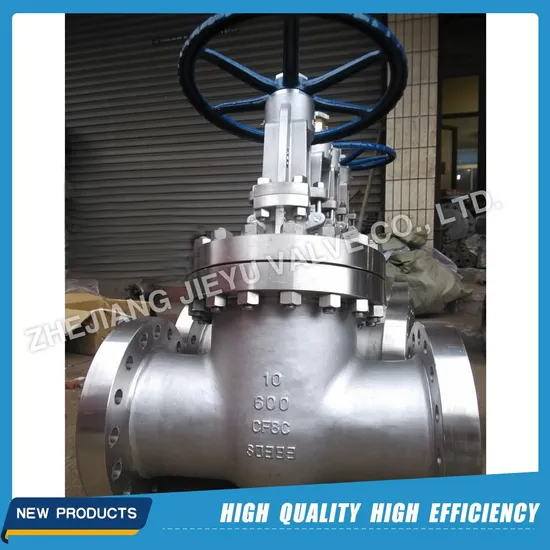

Flanged Rising Stem Gate Valve

Product Description

Flanged Rising Stem Gate Valve
Specification:
Size: 1/2"-30"
Pressure:150LB~1500LB
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear Devices, Electricty, Etc
End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)
Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system

Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection: ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc
Face to Face Std.: GB/T12221,DIN3202,Etc.
End Connection Std.: JB/T79,DIN2543-2550,GOST 12820-80,Etc.
Test Standard: ISO5208, API 600, BS 6755

NO.	Part Name	Material
01	Body	ASTM A216WCB	GS-C25,CF8,CF8M
02	Seat Ring	ASTM A216+13Cr
03	Wedge	ASTM A216+13Cr
04	Stem	ASTM A276 420	13Cr.F304,F316
05	Gasket	304+Graphite	GS-C25,CF8,CF8M
06	Bonnet	ASTM A216WCB
07	Stud	ASTM A193 B7	ASTM A193-B8
08	Nut	ASTM A194 2H	ASTM A194-8
09	Backseat	ASTM A216+13Cr
10	Stud	ASTM A193 B7
11	Nut	ASTM A194 2H
12	Yoke	ASTM A216WCB
13	Packing	Graphite
14	Pin	ASTM A276 410	C.S SS304 SS316
15	Gland Bolt	ASTM A193 B7
16	Gland Nut	ASTM A194 2H
17	Bushing	ASTM A276 410
18	Gland	ASTM A216WCB
19	Bearing	ASTM A29	A105,F304,F316
20	Stem Nut	ZcuAl10Fe3 Bronze	Bronze,SS304,SS316
21	Lubricator	Cu	Brass
22	Retaining Nut	C.S
23	Handwheel	ASTM A47	A105,F304,F316
24	H.W. Lock Nut	C.S	25#,SS304,SS316

---
