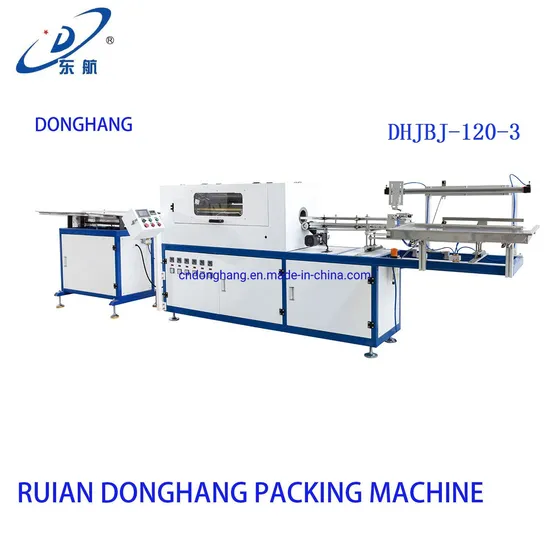

Cup Curling Equipment

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.

DHJBJ-120-3

Raw Material

PVC,PS,Pet,PP

Making Method of Parison

Feeding Cup,Curling,Completed Cupand Stacking

Automation

Automatic

Computerized

Certification

Power

380V/50Hz

Weight

0.9t

Air Pressure

0.6MPa

Size

5200*1100*1300mm

Transport Package

Wooden Packaged or Stretch Film Packaged

Specification

CE, SGS

Trademark

DONGHANG

Origin

China

HS Code

84774090

Production Capacity

50 Sets/Month

Product Description

Product Description
The machine is suitable for sheet of PVC, PS, PET, PP etc, to make curling the mouth cup.
we will depend on your different cup to make the different screws, then the end products will be much better.
CHARACTERISTICS:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.

Max. Speed of Curling	300-600pcs/min
Max. Dia. Of Curling	50-120mm
Main Motor	1.5Kw
Feeding Motor	0.09Kw
Heating Power	10Kw
Overall Size	5200×1100×1300mm
Power	380V/50HZ
Weight	0.9T
Air Pressure	0.6MPa
