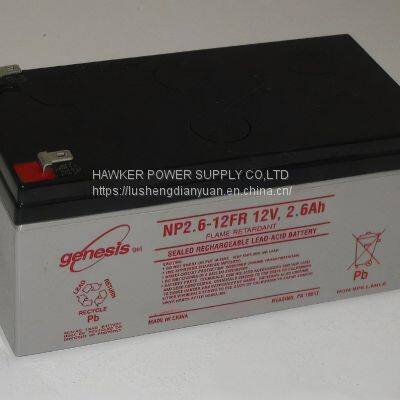

Genesis Battery NP2.6-12FR HAWKER HUOKE
Hawker Genesis NP Series
Product Name: Genesisgel NP Hawker
Model: Genesis NP
Brief introduction:
Hawker ® The Genesisgel NP series valve controlled sealed lead-acid batteries are produced using reliable AGM technology, integrating years of battery research and production experience from Hock. The reliability, safety, and efficiency of the battery system have been comprehensively improved. Based on the design concept of application and environmental protection, the NP series batteries have maximum flexibility in installation location and method, Can provide the best solution for system integrators or end users, therefore Hawk ® The NP series batteries have been widely used in fields such as communication, power, petrochemicals, metallurgy, financial centers, data centers, subways, exhibition halls, and new energy worldwide. Please contact Wang Zelong for specific parameter specifications of this product!
HAWKER POWER Supply CO, LTD is one of the world's advanced battery manufacturers. Hawk Power has offices all over the world, and its Beijing office provides the most direct and professional after-sales service to Chinese users.
Hawker ® The Genesis NP series valve controlled sealed lead-acid batteries are produced using reliable AGM technology, integrating years of battery research and production experience from Hock. The reliability, safety, and efficiency of the battery system have been comprehensively improved. Based on the design concept of application and environmental protection, the NP series batteries have maximum flexibility in installation location and method, providing the best solution for system integrators or end users, So Hawk ® The NP series batteries have been widely used in fields such as communication, power, petrochemicals, metallurgy, financial centers, data centers, subways, exhibition halls, and new energy worldwide.
Model rated voltage capacity
(10 hr rate AH) internal resistance
(m Ω) Maximum discharge current
(A 5sec) Length width height weight terminal
Mm. mm. mm. kg
NP24-12 12V 25 10.0 257.0 166.0 175.0 125.0 8.8 M6
NP33-12 33 9.0 342.0 195.5 130.0 179.0 12.3 M6
NP38-12 38 8.0 396.0 197.0 165.0 170.0 15.0 M6
NP40-12 40 8.0 415.0 197.0 165.0 170.0 15.5 M6
NP45-12 45 8.0 462.0 197.0 165.0 170.0 16.7 M6
NP55-12 55 6.0 563.0 229.0 138.0 228.0 18.2 M6
NP60-12 60 6.0 618.0 260.0 169.0 235.0 20.6 M6
NP65-12 65 6.0 662.0 349.8 166.0 174.0 22.0 M6
NP70-12 70 6.0 718.0 350.0 167.0 183.0 23.3 M6
NP75-12 75 6.0 765.0 259.0 168.0 227.0 25.5 M6
NP80-12 80 5.5 819.0 350.0 167.0 183.0 26.5 M6
NP90-12 90 5.2 918.0 304.0 168.0 229.0 28.5 M8
NP100-12 100 5.0 1025.0 328.0 172.0 222.0 30.0 M8
NP120-12 120 4.5 1220.0 407.0 177.0 225.0 35.0 M8
NP150-12 150 4.0 1548.0 483.0 170.0 240.0 44.5 M8
NP180-12 180 4.0 1873.0 530.0 209.0 219.0 53.0 M8
NP200-12 200 4.0 2032.0 522.0 240.0 240.0 60.0 M8
NP230-12 230 4.0 2365.0 521.0 269.0 208.0 67.0 M8
NP250-12 250 3.5 2568.0 520.0 268.0 220.0 75.2 M8
Hawk PL series lead-acid batteries
The Hawk RPL series maintenance-free pure lead acid batteries are a new type of high-performance lead-acid batteries, particularly suitable for deep cycling and fast charging requirements, and more suitable for use in harsh environmental conditions such as high and low temperatures.
The thin plate pure lead HUADA HAWKERR PL series battery produced by Hock Power Supply uses ultra-high purity materials and modern manufacturing technology, is a new type of high-performance lead-acid battery, especially suitable for deep cycle and fast charging requirements, and more suitable for use in harsh environmental conditions such as high and low temperatures.
1. Operating temperature range
To achieve the longest service life and best performance, the optimal operating temperature for AGVsafe PL series batteries is+20 ℃ to+25 ℃. AGVsafe PL batteries can fully operate within the temperature range of -40 ℃ to+80 ℃.
2. Storage
Batteries should be properly stored outside of a clean, cool, and dry area. Due to the electrochemical reaction inside the battery, the battery will also lose capacity in an open circuit state. Due to the extremely high purity of the grid and electrolyte in the AGVsafe PL series battery pack, the self discharge rate is very low. But high temperatures can increase the self discharge of batteries and shorten their storage life.
Figure 1 shows the curve of storage time, open circuit voltage (OCV), and capacity state with temperature changes
The storage period and open circuit voltage measurement time interval are shown in the table below:
The Hawk HAWKER PL series batteries have a high charging acceptance ability, and users can shorten the charging and fully charging time through fast charging methods, thereby shortening the interval between the battery's next operation and increasing the number of cycles of the battery within the same service life.
6.6 Data recording
Users must conduct daily data recording. The data to be recorded is as follows:
1) Number of cycles, depth of discharge per cycle (DOD)
2) The discharge and charging time of each cycle, as well as the amount of electricity discharged and charged (Ah)
3) Detailed data on the charging voltage/current curve for the last 50 cycles
4) Complete historical data of environmental temperature and battery surface temperature recorded regularly throughout the entire battery life
5) The date and time of each "event" occurrence ("event" refers to the start/stop of battery discharge, the start/stop of battery charging, the start and stop of generators or other power input devices, etc.)
7. Maintenance
In practical applications, users can usually develop maintenance plans based on on-site conditions, location, and manpower.
Below is a recommended maintenance plan.
● Every month (record all measurement data)
Measure the voltage of the battery pack. If necessary, adjust the float charging voltage to the correct value.
Every six months (record all measurement data)
Measure the voltage of the battery pack. If necessary, adjust the float charging voltage to the correct value.
Measure the voltage of a single battery. The fluctuation of individual battery voltage should be within 5% of the average voltage.
Check the surface of the battery for dust accumulation, loose connections, or corrosion. If necessary, isolate the battery pack/individual battery first, and then wipe it clean with a soft damp cloth. It is not allowed to use any solvent or cleaning powder to clean the battery.
If you have any questions about battery maintenance, please contact Hawk China headquarters.
8. Recycling and treatment
The Hawk HAWKER PL series batteries are recyclable. Scrapped batteries must be packaged and transported in accordance with current regulations and regulations. Scrapped batteries must be disposed of by a legitimate lead-acid battery recycling enterprise in accordance with national or regional laws.
Battery model
Rated voltage (V)
Rated capacity (AH)
Size (MM)
Weight (KG)
10 hour rate
long
wide
high
PL12-100
twelve
one hundred
three hundred and forty-two
one hundred and seventy-five
two hundred and sixteen
twenty-nine point five
PL12-110
twelve
one hundred and ten
three hundred and forty-two
one hundred and seventy-five
two hundred and sixteen
thirty-one
PL12-100F
twelve
one hundred
three hundred and ninety-five
one hundred and ten
two hundred and eighty-eight
twenty-eight
PL12-140F
twelve
one hundred and forty
five hundred and sixty
one hundred and twenty-five
two hundred and sixty
forty-two
PL12-195F
twelve
one hundred and ninety-five
five hundred and sixty
one hundred and twenty-five
three hundred and twenty
fifty-four point five
>>
