| • 16CH TVI / CVI / AHD video input |
| • 16CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording |
| • Standard H.265 high profile compression format to get high-quality video at much lower bit rate |
| • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse |
| • Multi-mode recording: manual / timer / motion / sensor |
| • Playback :16 CH simultaneously playback |
| • Search: time slice, time, event ( manual, sensor, motion ), tag search |
| • Express and flexible backup via USB, network and so on |
| • Pentaplex: preview, record, playback, backup and remote access |
| • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported |
| • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration |
| • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance |
| with mobile device |
| • Multi-user online simultaneously |
| • Authorization management, log review and device status review |
| • HDMI 4K output, true high resolution display |
| • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises |
| • Support NAT function and QRCode scanning by mobile phone and PAD |
| • Powerful smart phone & Pad surveillance with iOS and Andriod OS |

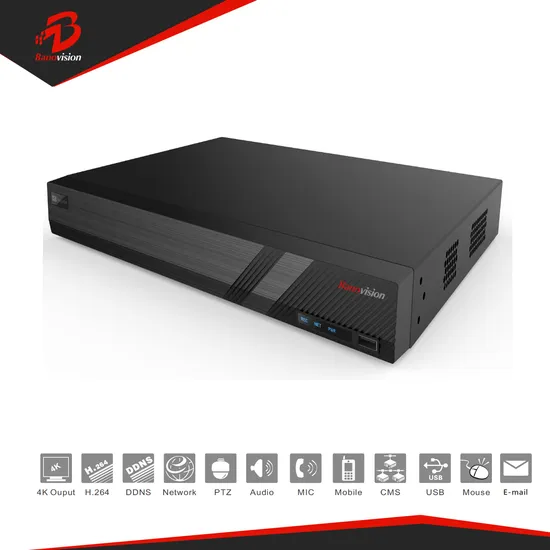

| Model | BA-1D5116 |
| System | Compression | Standard H.265 High Profile |
| CPU | Cortex A9 |
| OS | Embedded Linux |
| Video | Input | BNC × 16 |
| Resolution | TVI/ AHD : 5MP/ 4MP/ 3MP/ 1080P/ 720P/ WD1 CVI : 4MP/ 3MP/ 1080P/ 720P/ WD1 |
| IP Input / Access Bandwidth | 8CH (up to 16CH) |
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| BNC × 1 : CVBS ( used as the main or spot output ) |
| Audio | Input | RCA × 1 |
| Output | RCA × 1 |
| Two-way audio | Take up channel one audio input |
| Record | Resolution | 5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1 |
| Frame Rate | 5MP Lite :10fps 4MP Lite : 12fps (PAL)/15fps (NTSC) 1080P : 12fps (PAL)/15fps (NTSC) 1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC) |
| Bit Rate | 32Kbps ~ 5Mbps |
| Mode | Manual, timer, motion |
| IP Input | Resolution | 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P |
| Frame Rate | Up to 5MP@30fps |
| Playback | Playback | 16 CH |
| Search | Time slice / time / event / tag search |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
| Function | Play, pause, FF, FB, digital zoom, etc. |
| Alarm | Mode | Manual, motion, exception |
| Input | N |
| Output | N |
| Triggering | Record, snap, preset, e-mail, etc. |
| Network | Interface | RJ45 10/100Mbps × 1 |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| Accss/Transfer Bandwidth | 72/80Mbps |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD | SATA × 1, up to 8TB |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes |
| Port | RS485 | RS485 × 1, connect to PTZ and keyboard |
| USB | USB 2.0 × 2 |
| Remote Controller | Optional |
| Others | Power Supply | DC12V / 3A |
| Consumption | ≤ 10W ( without HDD ) |
| Dimensions ( mm ) | 255× 233 × 42 ( W × D × H ) |
| Work Environment | -10 ~ 50 ºC,10% ~ 90% humidity |
