US$450.00-498.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
MS7-H550-Pro mini magnetic stirrer
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP, CCC, API, CE, ISO
Work Plate Dimension
184X184mm (7 Inch)
Work Plate Material
Glass Ceramic
Motor Type
Brushless DC Motor
Max. Stirring Quantity[H2O]
20L
Max. Magnetic Bar[Length]
80mm
Heating Temperature Range
Room Temp.-550degree
Over Temperature Protection
580degree
External Temperature Sensor
PT1000
Operating type
Continuous Operating
Transport Package
Hard Carton Packing
Production Capacity
30000PCS/Year
Product Description
Product Description

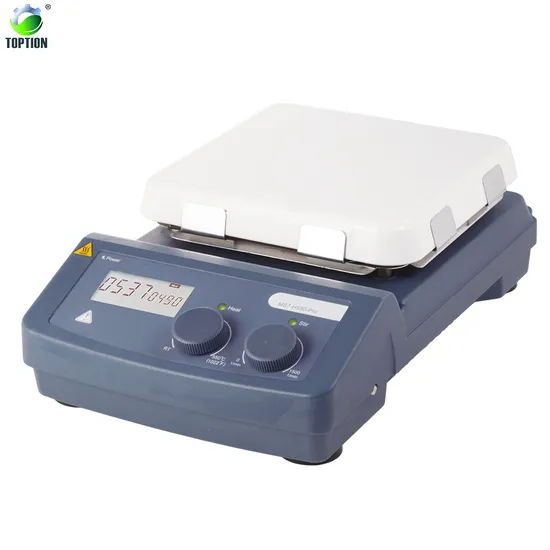

20L Magnetic Stirrer With Heating 550 Degree Centigrade
• LCD display for precise monitoring of speed and temperature
• Built-in PID controller ensures safe heating of the medium with overheating protection
• Max. heating plate temperature 550°C
• Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
• Digital speed controlling, max. speed at 1500rpm
• Outstanding brushless DC motor enables more stirring power
• Two rotating knobs enable easy adjustment of speed and temperatureL
• The "HOT" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
• Remote function provides PC control and data transmission
| Specifications | MS7-H550-Pro |
| Work plate Dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 1050W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity, [H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 100-1500rpm
resolution ±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-550°C,increment 1°C |
| Temperature control accuracy | ±1 °C (<100°C) ±1%(>100°C) |
| Overheating protection | 580°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| "Hot" warning | 50°C |
| Data connector | RS232 |
| Protection class | IP21 |
| Dimension [WxDxH] | 215x360x112mm |
| Weight | 5.3kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
