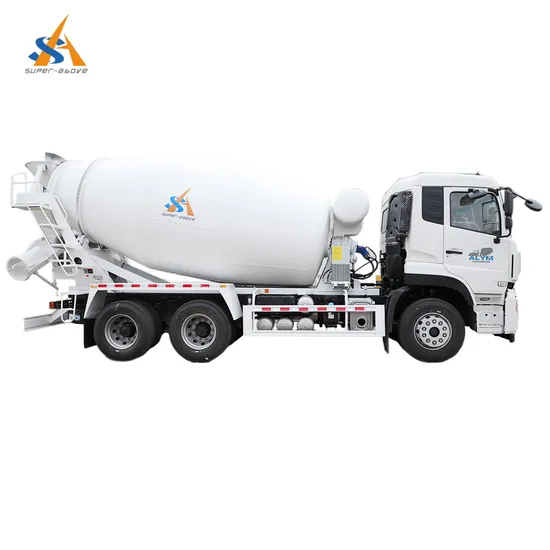

Super-Above 12cbm Concrete Mixer Truck Dongfeng 6X4

Product Description

Super-above Concrete Mixer Truck,Cement truck from 6-20cbm
Specification

Truck Model		SACMT24
Dimension(Lx W xH)(unloaded)(mm)		8560X2496X3048
Approaching angle/Departure angle(°)		16/24
Overhang(front/rear) (mm)		1550/1860
wheelbase(mm)		3825+1350
Max speed(km/h)		90
Curb weight(kg)		10580
total Weight(kg)		25000
Engine (Steyr technology, made in China)	Model	WD615.69water-cooled,four strokes,6 cylinders in line with water cooling,directly injection
	Fuel type	Diesel
	Horse Power, max(kw/rpm)	336HP
	Emission	EURO4
Fuel tanker capacity(L)		400L
Transmission	Model	HW19710,10 Forward gears,2 Reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	8118
Front axle	HF9
Rear axle	HC16
Color	White, red,Yellow . (Optional)
Tyre	12.00R20
Electrical system	Battery	2X12V/165Ah
	Alternator	24V-1540kw
	Starter	7.5Kw/24V

Introduction
1. Concrete mixer truck opting left hand drive or right hand driven.
2. Optional for chassis: 4x2, 4x4,6x4, 6x6, 8x4, 8x8 models.
3. 3m3, 5m3, 6m3, 8m3, 9m3, 10m3, 12 m3 14m3 etc, many capacity are available to choose.
4. Provide different brand chassis: DONGFENG, SINTRUK, SHACMAN, NORTH BENS, FOTON,
ROWOR, HINO, HUUNDAI, JMC.
Feature
1. The tank body uses double helical blades that makes its density moderate, with symmetrical mixing
board on the front taper place; double blades and guiding blades of discharge are installed on the outlet
of tank, which makes the discharge more evenly, faster in speed, and convenient for the pumping transportation
of other devices (such as automobile pump).
2. Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub frame
uses high intensity square tube with damping in the central area that can play role when vehicle is at full load
and under the bad conditions of road, which can lower the center of gravity of truck and make it move more
smoothly.
3. The upload production of this mixer adopts multiple advanced technology, which can produce various types
of mixer in volume such as 3m3, 5m3,6m3,8m3, 9m3,10m3, 12 m3,18 m3 etc.
System: Schwing Technology
Chassis option: Benz/Howo/Sachman/Dongfeng/Sinotruck/Foton/JAC
Concrete equipment ready for shipment&delivery

---
