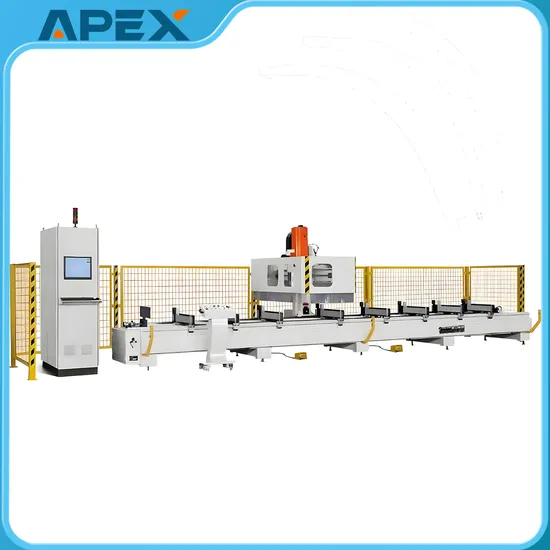

Lx-CNC-7000 High-Speed 4-Axis CNC Machining Center for Metal

Product Description

Technical Parameters

X-axis stroke	Y-axis stroke	Z-axis stroke	X-axis speed	Y-axis speed	Z-axis speed	Spindle speed/power	Gyrating range
7000mm	1400mm	600mm	0~60m/min	0~ 30m/min	0- 20mlmin	0-18000rpm/5.5kW	-90°-0°-+90°
Working pressure	Power supply	Total power	Clamp station	Cutter max length	Work area(W xHxL)	Dimension (W ×H×L)	Weight
0.5-0.8Mpa	380V/50Hz	10kW	8	165mm	650× 200×7000mm	11300× 2350× 2550mm	4500kg

This machine is designed for mounting hole,slots,locking hole ,end milling,threading and other slots for many kindsof curtain walls and aluminum doors and windows profiles.
1.This machine is designed for tapping, routing and milling holes, lock holes, launder and other slots on the profiles of curtain walls. It can work on various profiles.
2. It adopts YASKAWA servo-motor and driver which are made in Japan.
3. It adopts high speed HSD spindle of Italy
4. It adopts HIWIN linear guide and YYC grinded gear racks result highly precise process.
5. It adopts computer control system, CAD-CAM software, which are used in industry area specially.
6. It adopts SEIMENS electrical & pneumatic products, solenoid valves, SMC gas resource processors and JPC air cylinders.
6. Revolving six position mills makes the mill-changing convenient.
7. Double profile locating devices, no need to stop the machine while taking the profiles on and off.
8. With half-close safeguard device to insure the personal safety of the operator.
Our Advantages

Product details and features

Production Process
Packaging & Shipping
Company Profile
After Sales Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

---
