US$8,900.00-14,000.00
|
1 Set
(MOQ)
|
Basic Info.
Battery Capacity
24V 60ah
Transport Package
Wooden Case
Specification
5950*2010*2980
Production Capacity
5000 PCS /Month
Product Description
Product Description

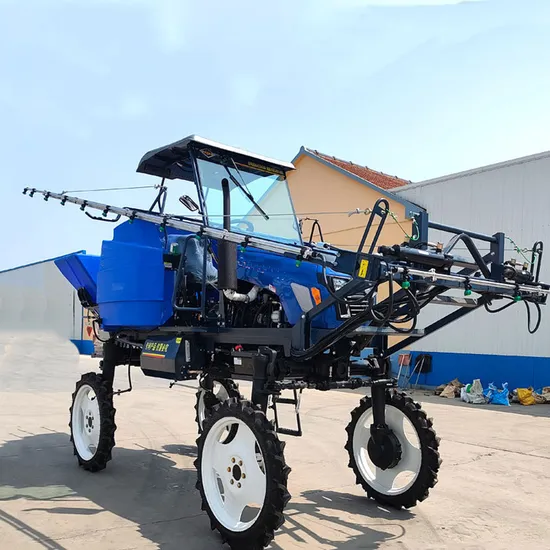

we are professional company manufacturing self-propelled boom sprayer of 700 liters,1000 liters,1300 liters,2000 liters and 4000 liters, which are widely used for spraying rice, wheat, corn, soybean,vegetables and other crops, greatly improving labor efficiency and pesticide utilization.
Product Parameters
Item | Content | Unit | Model |
BF3WPZ-700A | BF3WPZ-700L | BF3WPZ-700K |
Overall Size | Dimensions | mm | 5950×2010×2980 | 4850×2450×3070 | 4700×2050×2900 |
Boom Length | mm | 14350 | 17350 | 11200 |
Boom Lifting Height | mm | 500-1800 | 500-1800 | 500-1800 |
Ground Clearance | m | 1.1 | 1.05 | 1.02 |
Wheel Base | mm | 2050 | 2050 | 2050 |
Wheel Track | mm | 1520 | 1800 | 1500 |
Cab type | / | canopy | canopy | canopy |
Spraying System | Working Pressure | Mpa | 0.2-0.5 | 0.2-0.5 | 0.2-0.5 |
Tank Capacity | L | 700 (LLDPE) | 700 (LLDPE) | 700 (LLDPE) |
Mixing Mode of Pesticide | / | Jet Flow+Back Flow | Jet Flow+Back Flow | Jet Flow+Back Flow |
Spraying Width | m | 15 | 18 | 12 |
Working efficiency | m2/h | 45000-56000 | 50000-60000 | 40000-50000 |
Fuel consumption | liter/h | 6 | 6 | 6 |
Nozzle Type | / | Cone Spray/32 pcs | Cone Spray/38 pcs | Cone Spray/24 pcs |
Material of Boom | / | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy |
Position of Boom | / | Front | Front | Front |
Structure Type of Liquid Pump | / | Three Cylinder Plunger Pump | Three Cylinder Plunger Pump | Three Cylinder Plunger Pump |
Driving Mode of Liquid Pump | / | Hydraulic | Hydraulic | Hydraulic |
Engine System | Rated Power | kw/rpm | 36.8/2400 | 36.8/2400 | 36.8/2400 |
Battery Capacity | / | 24V 60AH | 24V 60AH | 24V 60AH |
Driving System (3+2)x2 | Driving Type | / | 4WD | 4WD | 4WD |
Steering Type | / | 4WS | 4WS | 4WS |
Tire Type | / | Pneumatic | Pneumatic | Pneumatic |
Tire Outer Diameter | mm | 1200 | 1400 | 940 |
Tire Width | mm | 130 | 130 | 120 |
Drive Axle Style | / | Front and Rear Differential Lock | Front and Rear Differential Lock | Front and Rear Differential Lock |
Turning radius | mm | 3000 | 3500 | 2900 |
Driving speed | km/h | 0-24 | 0-24 | 0-24 |
Fertilizer spreader | Spreading width | m | 15 | 18 | 15 |
Fertilizer tank | liter | 350 | 350 | 350 |
Optional | 1000 liter pesticide tank, Cab, Double disc type fertilizer spreader |
Remarks | The Above Parameters are subject to change without notice. |
Our Advantages
Machine In Warehouse
Frequently Asked Questions
Q: What's Service commitment?
A: 1.Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Q: What to do if the machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
>>
