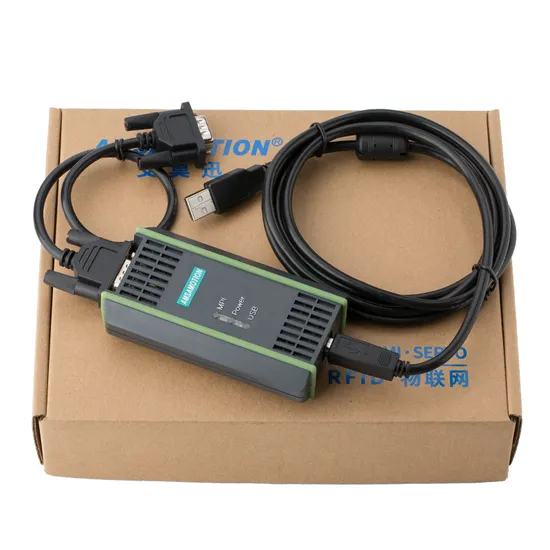

USB-Mpi for Siemens S7-200/300/400 PLC Programming Cable 6es7 972-0CB20-0xa0

Product Description

Main Parameter: 1.support PPI / MPI / DP communications; 2.Support 0CB20 eight generations of operating systems: Windows2000/ Win 2003 / Windows XP / Vista / windows 7 32bit / 64 bit 3.Support 0CB20 eight generations of programming software version: STEP7 V5.2 and higher, STEP7 Micro / Win 4.0 and above 4.Full-speed USB device interface, compatible with USB V2.0 specification 5.Power: USB bus powered, power consumption of about 100mA, with overcurrent protection and surge protection 6.Optical Isolation voltage: 1000VDC 7.USB port with anti-surge protection 8.Support for MPI baud rate: 19.2Kbps, 187.5Kbps automatically adapt 9.Support PPI baud: 9.6Kbps, 19.2Kbps, 187.5Kbps automatically adapt 10.Support for long-distance communications, the maximum communication distance of 1000 m (RS485 end, when the baud rate is 187.5Kbps) 11.LEDs with power, data reception indicator, the data transmission indicator 12.Working temperature: -30 ~ + 70 ºC 13.Cable length: 4.5m (Mulitpurpose Version 2.5m) Compare with normal PLC programming adapter , Amsamotion brand cable advantage as following; 1.Cable more softer, the quality of the communication will not be affected in cold winter, it suitable the temperature between -30-70degree. 2. Isolated cable resist the external interference 3. Amsamotion is more dedicated and specialized in its own brand 4. Gold plated good quality plug , Low resistance.

---
