High Precision Hydraulic Surface Grinding Machine with Ce (MY1224)

Product Description

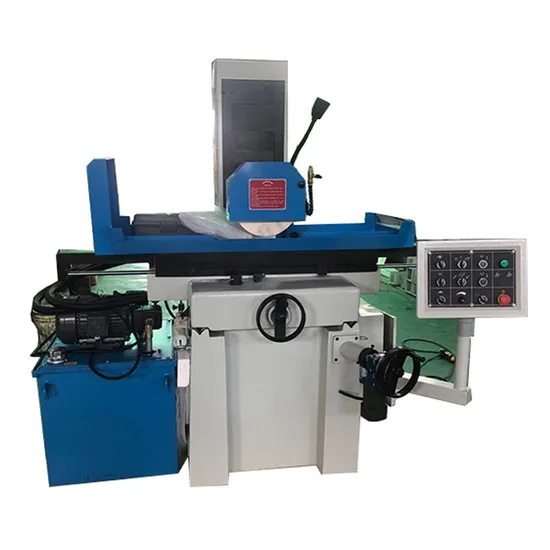

High Precision Hydraulic Surface Grinding Machine With CE(MY1224)
Main Features:
1.Hydraulic longitudinal table travel
2.Quality castings and Precision ball bearing supporting the spindle
3.Coolant system with nozzle and flow control valve
4.Cast iron machine body and stand for maximum rigidity and smooth operation
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light

Standard accessories:
Tool box
Balancing stand & bar
Handwheel nut
Flange wrench
Screw driver
Balancing screw
Open-end wrenches
Inner hexagon apnners
Wheel dresser holder
Machine stand pad
Wheel flange
Wheel dresser
Magnetic chuck


Optional accessories:
Tilting permanent chuck
Demagnetizer
Overhead parallel dresser
Angle dresser
Radius dresser
Precision vice
Dust suction device
Digital readout system
Working light
Wheel flange

Model		Units	MY820	MY1022	MY1224	MY1230
Table Size (L×W)		mm	480*220	540*250	600*300	750×300
( L×W)
table travel		mm	530x220	560x260	630x320	780x320
speed of working table		m/min	3-20
Distance From Spindle to table		mm	450	450	530	530
Table Slide way		/	V-type rail with Steel-ball		Double V-type rail
V-type rail with Steel-ball		kg	200	200	250	250
Number of T -Slot		mm*n	14*1
Cross Feed On Handwheel		mm	0.02/Graduation 2.5/revolution		0.02/Graduation 4/revolution
Vertical Feed On Handwheel		mm	0.01/Graduation 1.25/revolution		0.01/Graduation 2/revolution
Wheel Size (dia.×width×bore )		mm	200*20*31.75		250*25*76.2
wheel Speeds(50HZ)		rpm	2850		2450
Spindle Motor		kw	1.1	1.5	2.2	2.2
Hydraulic station motor		kw	1.5	1.5	2.2	2.2
Rapid Up and down Motor		w			120	120
Working Pressure		Mpa	3	3	4	4
Max.Capacity		L/min	18	18	20	20
Fuel tank capacity		L	80
Packing Size (L×W×H)		mm	1700*1200*1940	1300*1620*1900	1960*1640*2020	1960*1640*2020
Net,Gross		kg	750/850	900/1000	1300/1430	1400/1530

Our Services
1. Your inquiry and email will be replied within 24hours.

2. If you need to develop products with your own specification, we can help you to work it out.

3. Always be honest, never lie to customer, and never declare anything we don't have.

4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.

2. Delivery Time:
one week

3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.

4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS

---
