High-Precision Zmde CNC Drilling Machine for Steel Plates

Product Description

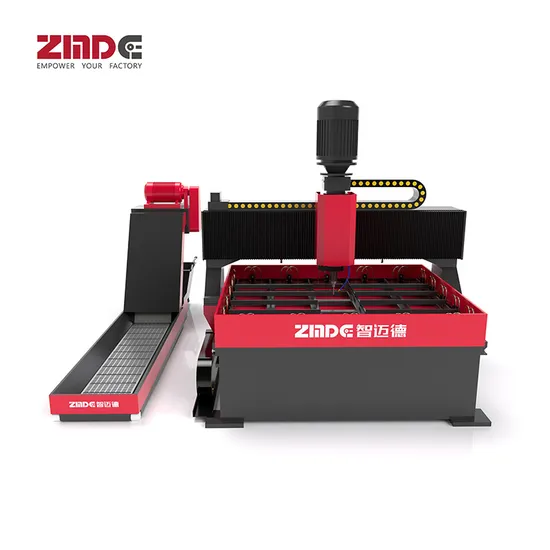

ZMDE Advanced H Beam CNC Drilling Machine for Steel Plate

>Cost-effective equipment <
1. Crafted with robust materials to ensure durability and a low failure rate, this equipment minimizes maintenance costs by utilizing industry-renowned brand components for ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters.
2. The CRT display facilitates automatic chip removal, significantly reducing manual cleaning time and associated costs.
3. With unmatched precision, this equipment ensures a high qualification rate for workpieces, thereby reducing consumable costs.
>Simple operation, High productivity <
1. Featuring a user-friendly human-machine interface, this system generates automatic machining programs, making operation clear and visual.
2. Precise positioning is guaranteed with CNC and PLC control.
3. Operators can effortlessly control the hydraulic clamps via a foot switch, ensuring convenient and labor-saving operations.
4. Equipped with 12 rapid-action hydraulic clamps, this machine can secure four groups of workpieces simultaneously for enhanced efficiency.
5. The ability to clamp small workpieces at the four corners of the table significantly reduces production preparation cycles and boosts efficiency.
6. Clamping small workpieces at table corners further shortens preparation periods and enhances production efficiency.
> Guaranteed quality, wide range of applications <
1. Key components like the gantry, column, and table are built from solid materials, with the main machine weighing up to 6300kg to ensure stability.
2. Suitable for a wide range of industries, this machine is pivotal for connecting plate processing.
3. Accommodates a wide range of drilling diameters from 12mm to 50mm.
> Suitable for various production scenarios <
1. Ideal for the continuous production of multiple batches of single flat-type workpieces.
2. Perfect for small batch production of various workpiece types, including rectangular, round flange, and polygonal shapes. Capable of processing two to four different specifications of plates simultaneously.
3. Efficiently processes multiple layers of thinner sheets stacked up to 100mm for drilled holes.
4. Automated software manages start and end points, capable of drilling through holes, blind holes, step holes, and chamfers.
> Production process automation <
1. The line board integrates seamlessly for a high degree of automation, automatically positioning according to the drilling program.
2. Adjusts the optimal feeding volume based on different hole diameters.
3. Allows for automatic, continuous processing of large hole diameters with one-time processing and molding.
4. Features an automatic chip removal function for enhanced efficiency.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
ZMDE Co., Ltd., established in 2013, stands at the forefront of innovation as a high-tech enterprise specializing in the research, development, manufacturing, sales, and service of assembly building intelligent equipment. Recognized as a national leader in specialization and novelty, ZMDE Co., Ltd. proudly holds the title of a 'Small Giant' enterprise. Our core industry expertise lies within the steel structure assembly building intelligent industrial mother machine and the Industry IoT.intelligent control system on two fronts.
Our headquarters, located in the Lingang New Area, Pudong New District, Shanghai, spans an impressive 32,000 square meters. It houses the Research Institute of Artificial Intelligence for Assembled Buildings, focusing on the management and development of high-end core technologies in Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
The Shandong base, situated in Weicheng District, Weifang City, is dedicated to the research, development, and production of intelligent industrial mother machines for steel beams used in assembled buildings, as well asintelligent industrial mother machines for the walls of assembled buildings.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
