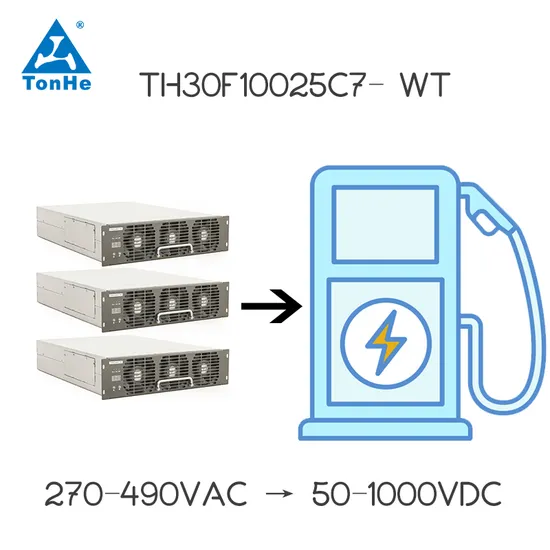

Product Description This product is three-phase 380VAC input, using the industry leading resonant voltage type double-loop control resonant switching power supply technology and three-phase three-level power factor correction technology, has the advantages of small size, light weight, high efficiency, high reliability.
| 30kw/1000v power module technical specification: |
| Model | TH30F10025C7 |
| Input feature | Input voltage range: | 285V~475V |
| Input frequency: | 50Hz±10% |
| Power factor: | ≥0.99 |
| THD: | ≤5% |
| Standby power consumption: | <12W |
| Output feature | Output voltage range: | 150~1000V DC |
| Max output current: | 80A |
| Constant function: | Output 1000-250VDC constant 30KW |
| Current range: | 2~120A |
| Current sharing imbalance for modules in parallel: | ≤±5% ( parallel average current should be more than 5A) |
| Voltage stabilization accuracy: | ≤±0.5% |
| Current stabilization accuracy: | ≤±1%(load current is in the range of 20%~100%) |
| Efficiency: | ≥96% |
| Soft start time: | 3~8 s |
| Communication Protocol: | CAN |
| Environmental | Working temperature(50ºC output derating): | -30~+75ºC |
| Storage temperature: | -40~75 ºC |
| Humidity: | 5%RH~95%RH no condensation |
| Cooling: | Fan cooling |
| Altitude: | 2000m |
| Others | Dimension (L*H*W): | 460*218*84mm |
| Weight: | ≤13kg |
| MTBF: | 30, 000 h |
| IP level: | IP20 |
