for Eco-Friendly Operations Electric-Powered Stone Crusher

Product Description

-Stone Crusher-
A stone crusher is a crucial piece of equipment in the mining, construction, and recycling industries. It is primarily used to reduce large rocks and stones into smaller pieces or even fine aggregates. Here is a brief introduction:
Types
• Jaw Crusher: It uses compressive force to break stones. The movable jaw compresses the material against the fixed jaw, crushing it into smaller sizes. Ideal for primary crushing.
• Cone Crusher: Operates by squeezing the material between a mantle and a bowl liner. It is commonly used for secondary and tertiary crushing, producing more uniformly sized particles.
• Impact Crusher: Breaks stones by impacting them with a high-speed rotor. It can produce a more cubical shape of crushed materials, suitable for applications where shape matters.
• Roller Crusher: Consists of two or more rollers that rotate towards each other. The stones are crushed as they pass through the gap between the rollers, often used for fine crushing.
Applications
• Construction Industry: It is used to produce aggregates for concrete, asphalt, and road base materials.
• Mining Industry: Helps in processing ores and separating valuable minerals from the rock.
• Recycling Industry: Can crush concrete and asphalt waste, making it possible to reuse the materials in new construction projects.
Advantages
• High Efficiency: Stone crushers can process large volumes of materials in a short time, improving production efficiency.
• Versatility: They can handle various types of rocks and stones, adapting to different project requirements.
• Cost-effective: By reducing the need for manual labor and increasing productivity, they save costs in the long run.

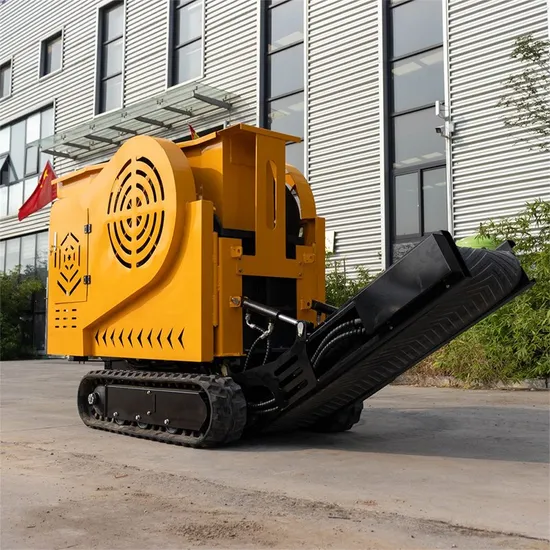

Detailed Photos

Working Size(mm)	3200*1000*1620
Vertical plate inner width (mm)	380
Shipping size (mm)	2100*1000*1750
Total outer width of cover	960
Tracktype(mm)	180*72*41
Weight wheel diameter (mm)	126
Number of wheels (groups)	6
Feed port size (mm)	220*350

Maximum feed size (mm)	200
Bunker volume (m3)	0.25
Stacking height (mm)	700-1150
Feed conveyor (mm)	1500*500
Gravel range (mm)	15-50
Travel speed (km/h):	0-3
Track specifications	rubber track
Production capacity (T/h tons/hour) :	2T-5T/h

Our Advantages
Company Profile
-COMPANY-
China Machinery (Jining) Industrial Co., Ltd. (CNMC) was established in 1953, with a registered capital of 106.2 million RMB. Formerly known as "the Seventh Transport Equipment Company directly under the Ministry of Housing and Urban - Rural Development of the P.R.C", it set up the Jining Branch of Shandong Industrial Equipment Company in 1958 (a state - owned enterprise under MOHURD). In 1989, it grew into Shandong Industrial Second Transport Equipment Manufacturing Company. In cooperation with partners, it established Shandong Deer.az Co., Ltd. which was engaged in real estate and machinery manufacturing. In 2010, the enterprise was transformed into Shandong China Transport Industrial Group. In 2016, Jining China Machinery Imp&Exp Co., Ltd., Jining Shenghong Textiles Co., Ltd. and its first overseas branch, PT. China DEER.AZ Engineering Indonesia, were established. It is a famous large - scale comprehensive group, involved in engineering installation, real estate, machinery manufacturing, textile and clothing, as well as all import and export businesses.

---
