Product Description
Product Description

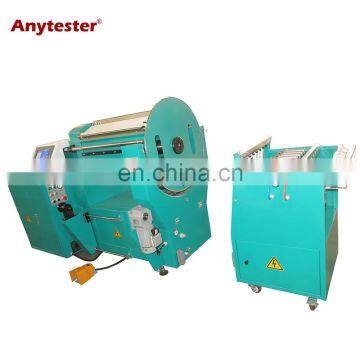

Product DescriptionProduct Application.AT241C Automatic Single Yarn Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241C Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.SpecificationsWarping width200~700mmWarping speed0~3000m/min (frequency control)Warping length1.8~18mApplicable yarn density5~500texNumber of bobbins8pcs (automatically-changeable)Yarn arrangementServo motor control with accuracy of 0.01mm reachableApplicable warp beam diameter¢60mmApplicable warp beam length300~700mmAir pressure required0.4~0.8MpaAir consumptionMax. 200L/hPower supplyAC380V 50Hz, three-phaseDimensions4650×1100×1400mm(L×W×H)Details & Features★ PC control and software for arranging the laying of yarn;★ Special design for sample weaving in lab or research and development institute; ★ With inching and stop button for the safety of operator; ★ Accuracy of warp displacement reaches 0.01mm;★ SMC rotating cylinder used for color selection, accurate and reliable to change yarn;★ AC frequency converter to control yarn winding, online detect winding speed;★ Frequency converter control beaming mechanism, ensure constant winding speed while beaming; ★ Pneumatic pressuring and damping structure to acquire even yarn tension; ★ Bobbin creel adopts air pressure tension-relaxation-preventing structure; avoid tension relaxation while changing yarn;★ Automatic warp break stop and yarn double winding stop;★ Foot pedal for unwindingPacking & DeliveryPackagingSize140(L) * 100(W) * 180 (D)Weight600 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertifications
>>
