DIN931 / A2-70 Stainless Steel Hexagon Head Bolts Plain Surface Hex Head Screws

Product Details

Product Description

Product Description
Product Name:Surface:Standard:Head Type:Thread:Accessories:High Light:

Hex Head Bolt	Plain
DIN931	Hex Head
Half Thread	Nut & Washer
Plain Hex Head Screws, Stainless Steel Hex Head Screws DIN931, Plain Stainless Hex Head Bolts

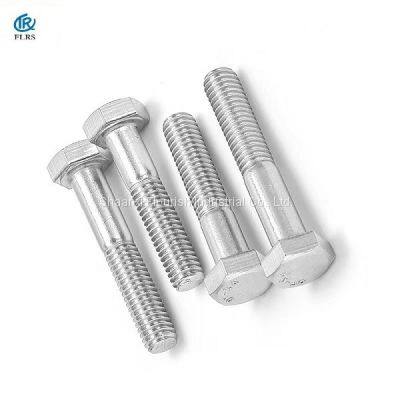

Stainless Steel Hexagon Head Bolts DIN931 / A2-70 Hex Head Screws
DIN931 hexagonal bolts, also known as external hexagonal bolts, are fasteners consisting of two parts: a hexagonal head and a screw with external threads, which are generally used in conjunction with nuts and are commonly used to fasten connections between two parts with through holes.
DIN931 hexagonal bolts are half thread. partly threaded and partly bare rod. The thread include coarse and fine teeth.
DIN931 hexagon bolts with coarse teeth are often used in conjunction with nuts, using a threaded connection to connect the two parts into a whole, which is a removable connection. The fine tooth is the same as the coarse tooth, but the fine tooth hexagonal bolt has good self-locking performance, and is mostly used for parts subject to large impact vibration or alternating load, and can also be used for the adjustment of fine adjustment mechanism.
Hexagon bolts in use should pay attention to anti-loosening, otherwise it will affect the normal work and cause accidents. Anti-loosening methods are: friction anti-loosening, mechanical anti-loosening or other anti-loosening measures.
Hexagonal bolt connection, simple assembly, easy disassembly, high efficiency, and wide application, mainly used in various mechanical equipment, electronic products, communication equipment, furniture equipment, construction industry and other industries of production, installation, maintenance, etc..

Mon	M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M7	M8	M10
p	0.35	4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5
da max	2	2.5	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2
ds max	1.6	2	2.5	3	3.5	4	5	6	7	8	10
d min	1.46	1.86	236	2.86	3.32	3.82	4.82	5.82	6.78	7.78	9.78
e min	3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9
k max	1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.58
k min	0.9B	1.28	158	1.88	2.28	2.68	3.35	1.85	4.65	5.15	6.22
r min	0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4
s max	3.2	4	5	5.5	6	7	8	10	11	13	17
s min	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73

Mon	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36
p	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4
da max	13.7	15.7	17.7	20.2	22.4	24.4	264	304	334	364	394
ds max	12	14	16	18	20	22	24	27	30	33	36
d min	11.73	13.73	15.73	17.73	19.67	21.67	23.67	26.48	29.48	32.38	35.38
e min	21.1	24.49	26.75	30.14	33.53	35.72	39.98	45.2	50.85	55.37	60.79
k max	7.68	8.98	10.18	11.72	12.72	14.22	15.22	17.35	19.12	2142	22.92
k min	7.32	8.62	9.82	11.28	12.28	13.78	14.78	16.65	18.28	20.58	22.08
r min	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1
s max	19	22	24	27	30	32	36	41	46	50	55
s min	18.67	21.67	23.67	26.67	29.67	31.61	35.38	40	45	49	53.8

---
