Horizontal Metal High Precision Lathe Machine Q1322 Oil Country Lathe Pipe Threading Lathe Machine

Product Description

Horizontal metal high precision lathe machine Q1322 Oil Country Lathe Pipe Threading Lathe Machine
Product Description
Characteristics:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Application:
Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
Main technical specifications:

SPECIFICATIONS	Units	Q1322
Swing over bed	mm	630/800
Swing over cross slide	mm	340/520
Distance between centers	mm	1500/3000
Pipe threading range	mm	50-220
Guideway width	mm	550
Max. load capacity	kg	3000
Spindle bore	mm	230
Spindle speed steps	-	VF. 4 steps
Spindle speed range	rpm	20-550
Chuck	mm	φ520 4-jaw manual
Turret/tool post	-	Manual 4 position
Tool shank size	mm	32 x 32
X axis travel	mm	320/420
Z axis travel	mm	1350/2850
X axis feed steps/range	mm/r	22/0.02-0.45
Z axis feed steps/range	mm/r	26/0.07-1.33
X axis rapid traverse	mm/min	2300
Z axis rapid traverse	mm/min	4000
Metric thread kinds /range	mm	1-15
Inch thread kinds /range	T.P.I	14-1
Tailstock quill diameter	mm	100
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	250
Main spindle motor	kw	11
Rapid traverse motor	kw	0.3
Coolant pump motor	kw	0.125
Weight for 1500	kg	4500
Weight for 3000	kg	5700
Dimension for 1500	mm	3700x1650x1550
Dimension for 3000	mm	5200x1650x1550

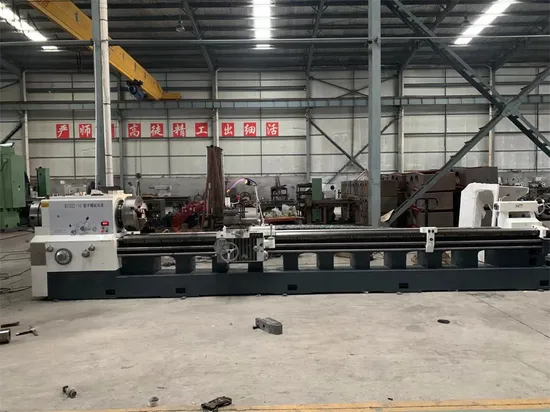

Detailed Photos

Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
