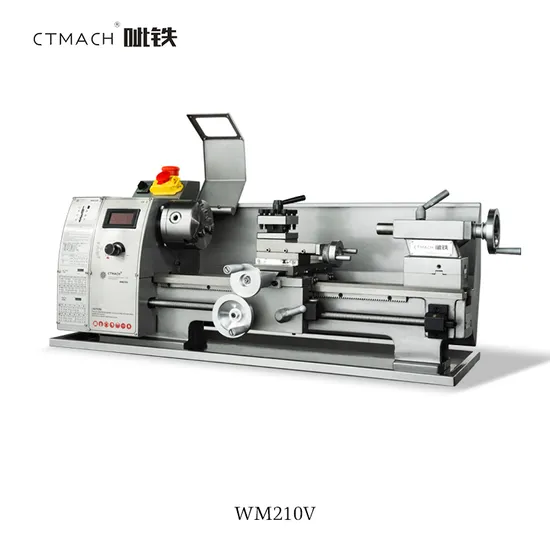

Wm210V Household Desktop Mini Metal Lathe Price for Sale

US$720.00
1-2 Sets
US$700.00
3-4 Sets
US$680.00
5+ Sets

Basic Info.

Model NO.
WM210V
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
900*480*480mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
500

Packaging & Delivery

Package Size
84.00cm * 34.00cm * 36.00cm
Package Gross Weight
70.000kg

Product Description

Maximum turning diameter bed 210mm
Maximum turning diameter of middle carriage 140mm
Two top distance 400mm
Spindle speed range/Grade 50-2250rpm/variable
Taper of spindle bore MT3
Spindle bore 22mm
Tailstock quill travel 60mm
Taper of tailstock quill MT2
Cross slide travel 75mm
Top slide travel 55mm
Range of metric threads 0.3-3mm
Range of inch threads 10-44T.P.I
Cutting feeds 0.089/0.147/0.198mm
Noise <75dB
Motor 220v/750w 50HZ
N.W./G.W. 60/75kg
Machine size 823×398×340mm
Packing size 900×480×480mm
