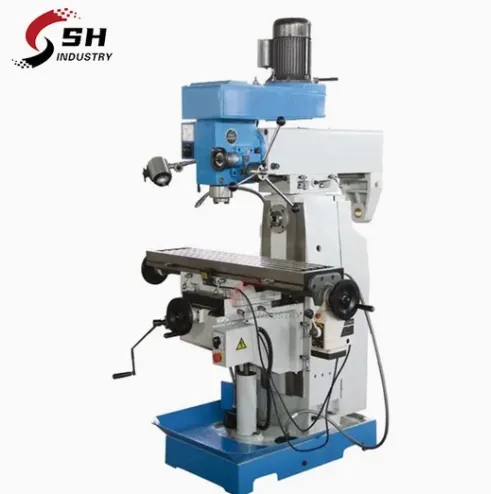

Universal Precision Vertical Milling and Drilling Machine Zx7550cw Good Quality Automatic Drilling and Milling Machine for Sale

Product Description

Universal Precision Vertical Milling and Drilling Machine ZX7550CW Good Quality Automatic Drilling and Milling Machine for Sale
Product Description
Main technical specifications:

Specifications(mm)	ZX7550CW
Max. drilling dia.(mm)	50
Max. end milling width(mm)	100
Max. vertical milling dia.(mm)	25
Max.boring dia.(mm)	120
Max. tapping dia.(mm)	M16
Distance from spindle nose to table surface(mm)	90-490
Vertical spindle taper	MT4
Horizontal spindle taper	ISO40
Spindle speed range(r.p.m)	115-1750(V) 80-1300(H)
Spindle travel(mm)	120
Table size(mm)	1000×240
Table travel(mm)	600×230
Table feed speed(mm/min)	X:16-480
Overall dimensions (mm)	1280×1285×2080
Spindle motor power (kw)	1.5/2.2(V) 2.2(H)
Machine weight (kg)	900/1000

Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
