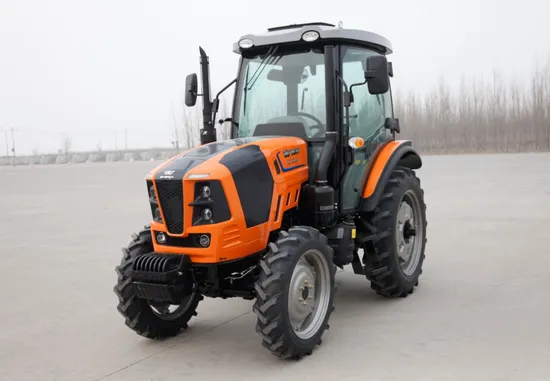

Ensign Factory Sell 60HP Tractor for Paddy Filed

Product Description

Strong Power
Quanchai engine is adopted for advanced performance, strong power and high economic benefits.
Power emission and performance are upgraded constantly with lower fuel consumption, high reliability and advanced technology.
High Reliability
Strengthened independent control double-action clutch is adopted as standard configuration, contributing to high reliability.
High pressure individual power position lifter is equipped as standard configuration, contributes to higher reliability
Enlarged and incorruptible plastic fuel tank, new type of dry air filter, longer service time
The hydraulic system uses oil separately and adopts 24° cone seal, ensuring the cleanliness, low fault and high reliability.
Dry air filter is equipped, which has good filtering effect, convenient maintenance, high cleanliness of the air intake system, and avoids the abrasion of engine inner parts.
Combined instruments equipped which have more accurate data and more obvious functions. The performance of the whole machine can be monitored in time during operation
High Adaptability
Two groups hydraulic output is adopted as standard, and one group as optional, enabling the tractors to adapt to various work sites.
Semi-detached two-speed power output with three combinations of 540/760rpm, 540/1000rpm and 760/1000rpm enable the tractors to work with kinds of implements.
There are many choices of tires. Paddy tires with specifications of 9.5-24/14.9-30 can be equipped as optional, increasing the passing ability.
Rear wheel tread adopts stepless and step-adjustable methods, suitable for any ridge distance operation, and has a wide range of uses.
Air brakes can be equipped as optional to meet the demand of hooking up the trailer.
Comfortable Driving
Sliding sleeve gearbox with shift gears of 12F & 12R features reasonable speed match. Synchronizer as optional, easy to operate.
The clutch adopts the hanging pedal type, which is convenient and free to step on. The main and auxiliary transmissions are operated on the side, and the operation is flexible and light.
Full hydraulic steering system is adopted for easy driving and flexible steering.
Adjustable steering wheel contributes to comfort.
Streamlined design of the tractor body improves heat balance and contributes to aesthetic appearance.
Adopting vibration-damping flat floor and optional sealed cab, which has good sealing performance, low vibration and low noise of the whole machine. Rear-view camera and GPS can be equipped as optional.

Model No.	YX554-C	YX604-C	YX704-C	YX804-C		YX904-C
Drive Type	4WD	4WD	4WD	4WD		4WD
PARAMETERS
Overall Size (LXWXH, mm)	4010x1840x2790	4010x1840x2790	4010x1840x2790	4010x1840x2790		4010x1840x2790
Minimum operation mass(kg, with cab)	2850	2850	2850	2850		2850
Wheel base(mm)	2070	2070	2070	2070		2070
Front wheel track (mm)	1300/1350/1450/1550	1300/1350/1450/1550	1300/1350/1450/1550	1300/1350/1450/1550		1300/1350/1450/1550
Rear wheel track (mm)	1300-1500	1300-1500	1300-1500	1300-1500		1300-1500
Min ground clearance(mm)	400	400	40 0	400		400
Mini turning radius(m)	4.5±0.3	4.5±0.3	4.5±0.3	4.5±0.3		4.5±0.3
Max Speed (km/h)	34	34	34	34		34
Max traction force(kN)	25.8	25.8	25.8	25.8		25.8
Tire specification (F/R)	Normal tire			8.3-24/11-32(R1,R2,PR1)
				9.5-24/14.9-30(R1,R2,PR1)
				9.5-24/11-32(R1,R2,PR1)
				8.3-20/12.4-28(R1,R2,PR1)
				8.3-20/9.5-32(R1,R2,PR1)
	Paddy tire			8.3-24/11-32(R1,R2,PR1)
				9.5-24/14.9-30(R1,R2,PR1)
				9.5-24/11-32(R1,R2,PR1)
ENGINE Model/Emission	Quanchai /CN III	Quanchai /CN III	Quanchai /CN III	Quanchai /CN III	Quanchai /CN III
Model	4C5-55U32	4C5-60U32	4C5-70U32	4C6-80U32	4C6-90C31/4C6-90C33
Engine type	Vertical,Direct injection,four -stroke, water cooled
Max torque (N.m) @engine speed(rpm)		240-245	240	305	350
Air intake type	Turbo Charged
No. of cylinders/Displacement(L)	4	4	4	4	4
Rated power(kW)		44.1	51.5	59	66.2
Rated speed(r/min)	2400	2400	2400	2400	2400
Air filter Type	Wet/DRY
Fuel tank capacity(L)	65/90/120	65/90/120	65/90/120	65/90/120	65/90/120
TRANSMISSION SYSTEM
Clutch	Dry ,Dual action Dry, Single action(optional)
No. of Gears	12F+12R
Shift type	Sliding sleeve/Synchronizer (optional)
HYDRAULIC SYSTEM
Hydraulic output flow rate	33L/min	33L/min	33L/min	33L/min	33L/min
Hydraulic output valve	2group/1group(optional)
WORKING DEVICE
Lifter	General lifter /higher pressure lifter
3 point linkage	Cat.1	Cat.1	Cat.1	Cat.2	Cat.2
PTO speed (rpm)	540/760 540/1000(optional)
PTO spline number	8 , 6(optional)
PTO power(kW)PTO	≥34	≥37.5	≥43.8	≥50.2	≥56.3
Lifting Force(kN)	≥15.2	≥15.2	≥15.2	≥15.2	≥15.2
Tillage depth adjustment	Position and float ,Draft,
Airbrake	With or without(optional)
BRAKING AND STEERING
Braking system	Wet, Disk type brake ,mechanical control
Steering type	Hydraulic steering

Ensign Heavy Industries Co., Ltd. It is a large machinery manufacturing enterprise, professional in the R&D and production of agricultural machinery tractors, construction machinery wheel loaders and industrial vehicles forklift trucks. The company has world-leading technology R&D centers, fully functional manufacturing centers and also has built a supporting industrial park with complete facilities. The company has ISO9001 Quality Management System, ISO45001 Occupational Health and Safety Management System, ISO14001 Environmental Management System and other qualification certification.

---
