LAN Cable Cat5e CAT6 Cat 7 UTP FTP SFTP Hot Sale Network Ethernet Fluke Pass with CE RoHS ETL CPR Test

US$11.00 100 Boxes (MOQ)

Basic Info.

Model NO.

CAT 6

Cover Material

PVC/LSZH/etc

Type

CAT6

Material Shape

Round Wire

Conductor Type

Solid

Wire Core Material

Bare Copper Wire

Certification

CE, ISO, RoHS, CCC, VDE, UL, Atanel

Model

Cat5e, CAT6, CAT6A, Cat7, Cat8

Brand

Wayin

Lead Time

7 Days

Conductor Diamater

0.57±0.005mm

Insulation Material

HDPE

Insulation Diameter

1.34±0.02mm

Cable Diameter

6.1±0.3mm

Rip Cord

Nylon

Transport Package

Box (305m)

Specification

305M/500M/1000M

Trademark

OEM

Origin

Ningbo, China

HS Code

8544491100

Production Capacity

800000 Boxes/Year

Product Description

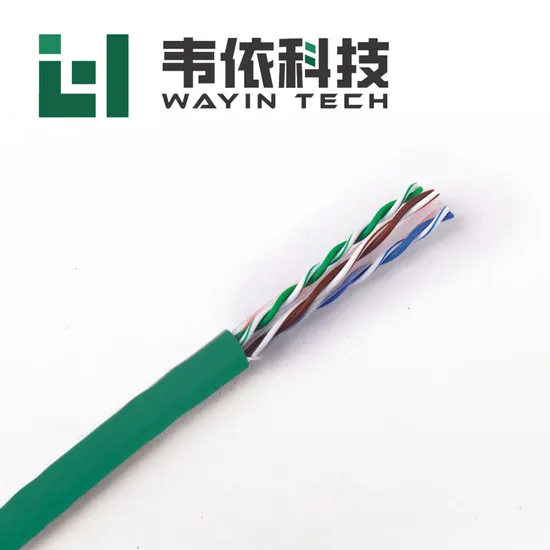

CAT 6 Cable
Standards
UL Subject 444, ANSI/TIA 568C.2, ANSI/TIA 568.2-D, ISO/IEC 11801, IEC 61156-5, YD/T1019-2013
Application
100 BASE-Tc, 100 BASE-TX, 1000 BASE-T, 1000 BASE-TX, 155 Mbps ATM, 622 Mbps ATM, 100VG-AnyLAN
Mechanical Characteristics

Operating Temperature	-20ºC~75ºC
Maximum Pulling Force	110N
Minimum Bending Radius	4 X O.D.
Flame Test	PVC: CMX/CM/CMG/CMR LSZH:CPR-B2ca/Cca/Dca/Fca
