Basic Info.
Size
1/8" to 24"(Dn6-600)
Transport Package
In bundles or wooden box
Specification
according to the requirment
Production Capacity
1000 Ton/Month
Product Description

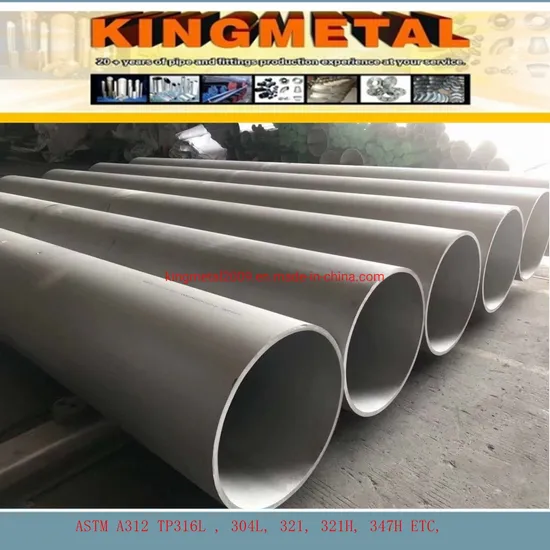

A312 304/316/310S 321/321h/ 347h seamless Stainless Steel Pipe
1. Seamless stainless steel pipe:
Size-- 1/8" to 24"(DN6-600)
Material--304, 304L, 316, 316L, 317, 309, 202, 312, 310, 347 etc
Standard--ASTM A213/A312/A269/A270
2. Welded stainless steel pipe:
Size-- 1/8" to 48"(DN6-1200)
Material--304, 304L, 316, 316L, 317, 309, 202, 312, 310, 347 etc
Standard--ASTM A312/A249/A270/A554
3. Aplication: Boiler, heater exchanger, food, paper making, metallurgy, shipbuilding, environmental protection, pressure container, water, electricity etc.
WE, KINGMETAL, IS A PROFESSIONAL MANUFACTURER IN STEEL INDUSTRY SINCE 1989,
WITH OVER 20 YEARS EXPERIENCE IN EXPORING,
WE BELIEVE WE CAN SUPPORT OUR CUSTOMER WELL AND GROW STRONGER AND STRONGER TOGETHER.
WE INSIST ON GOOD QUALITY, GOOD SERVICE, AND COMPETITIVE PRICE.
| Name | Stainless Steel Pipe |
| Standard | GB12770,GB12771,ASTM A249,ASTM A269,ASTMA270,ASTMA312,ASTMA554,JIS G 3463 |
| Material Grade | 304,316,201,202,316L,430 |
| Main Material | a) 201 (Ni0.8%-1%) |
| b) 202 (Ni: 3.5%-4.5%) |
| c) 304 (Ni: 8% Cr: 18%) |
| d) 316 (Ni: 10% Cr: 18%) |
| Thickness | 0.5-2.0mm |
| Length | 15x15,18x18,20x20,23.5x23.5 or as customers' request |
| Tolerance | a)Outer Diameter; +/-0.2mm |
| b)Thickness; +/-0.03mm |
| c)Length;+/-5mm |
| Surface | 180G, 320G, 400G Satin / Hairline |
| 400G, 500G, 600G or 800G Mirror finish |
| Application | Electronics |
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT |
| Chemical Composition of Material | Composition | 201 | 202 | 304 | 316 | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.12 |
| Si | ≤1,00 | ≤1,00 | ≤1,00 | ≤1.00 | ≤1.00 |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 |
| Cr | 12.5-14.5 | 15-18 | 18-20 | 16-18 | 16-18 |
| Ni | 0.8-1.5 | 46 | 8-10.5 | 1014 | |
| Mo | | | | 2.0-3.0 | |
| Mechanical Proper | Material Item | 201 | 202 | 304 | 316 |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 |
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 |
| Extension | ≥30% | ≥30% | ≥35% | ≥35% |
| Hardness(HV) | <253 | <253 | <200 | <200 |
>>
