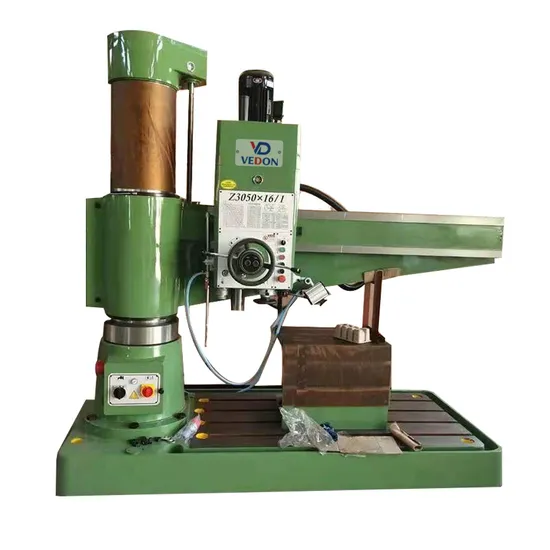

China High Quality Hydraulic Clamping Radial Drilling Machine Z3050

Product Description

Specifications

Specification
Model:	Z3050x16/1
Max.drilling diameter:	50mm
Distance from spindle axis to column:	350-1600mm
Horizontal travel of headstock on arm:	1250mm
Distance from spindle nose to base surface:	320-1220mm
Swivel angle of arm:	±180°
Spindle taper:	MT5
Range of spindle speed:	32-2500rpm
Number of spindle speed:	16steps
Number of spindle feed:	16steps
Spindle travel:	315mm
Power of the main motor:	4kw
Worktable size:	630*500*500mm
Overall dimension:	Overall dimension
Machine weight:	3500kg

Machine Details
SPINDLE BOX
Fixed-range machining, spindle forwardand reverse rotation, speed change, neutral gear and other actions are all controlled by a handle.
HIGH FREQUENCY QUENCHING COLUMN
The columns are all high-frequency quenched, with good rigidity, high surface finish and long service life.
HIGH-PRECISION SPINDLE
Spindle taper: MT4
Speed: 22-1300
large spindle: stroke
CAST IRON TABLE
The workbench has undergoneaging treatment, is strong andstable, and has a long service life.
Packaging & Shipping

Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?A: Yes, As long as the order quantity reach to the MOQ.Q2. What's your trade terms?A: FOB, CIF, DAP or other terms are acceptable.Q3. Could I order trail small order?A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.Q4. What points need to be confirmed before placing the order?A: Voltage, frequency, plug type trade term and have shipping agent or not.Q5. What is your terms of payment ?A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
