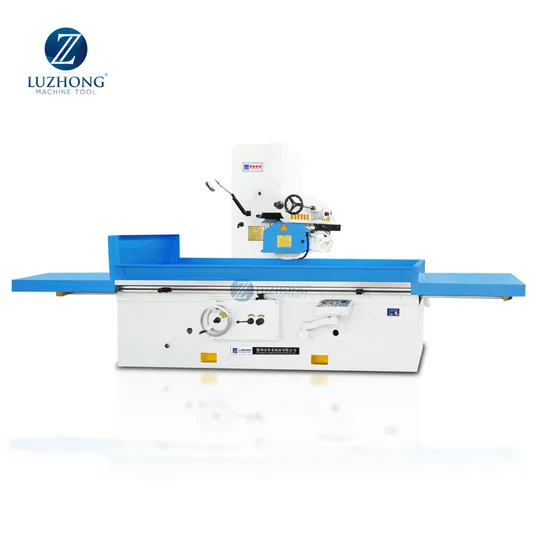

Hot selling cheaper high quality M7140 surface grinder machine for sale

Product Description

Hot selling cheaper high quality M7140 surface grinder machine for sale
Product Description
Product Parameters
Product main technical specifications:

Specifications		Unit	M7140A	M7140AX1600	M7140AX2200
Table size		mm	400x1000	400x1600	400x2200
Max.size to be grind		mm	400x1000x400	400x1600x400	400x2200x400
Max.load capacity(with electric magnetic chuck)		mm	630	1000	1380
Max distance from table surface to spindle center		mm	600	600	600
Max.table longitudinal travel		mm	1100	1700	2300
Min. Table longitudinal travel		mm	200	200	200
Table longitudinal travel speed		m/min	3-27	3-27	3-27
Table T slot			3x18	3x18	3x18
Wheelhead cross travel	Continuous feeding speed	m/min	0.5-4.5	0.5-4.5	0.5-4.5
	Intermittent feed travel	mm/t	3-30	3-30	3-30
	Per div feed of handwheel	mm	0.02	0.02	0.02
Wheelhead vertical travel	Rapid speed	mm/min	400	400	400
	Per Rev. feed of handwheel	mm/gra	0.01	0.01	0.01
	Per Rev. feed of handwheel	mm	0.645	0.645	0.645
Wheelhead motor	Power	kw	7.5	7.5	7.5
	Speed	rpm	1440	1440	1440
Total rated power		kw	11	11	11
Grinding wheel size(OD*W*ID)		mm	400x40x127	400x40x127	400x40x127
Machine weight		kg	4700	6600	8000

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
