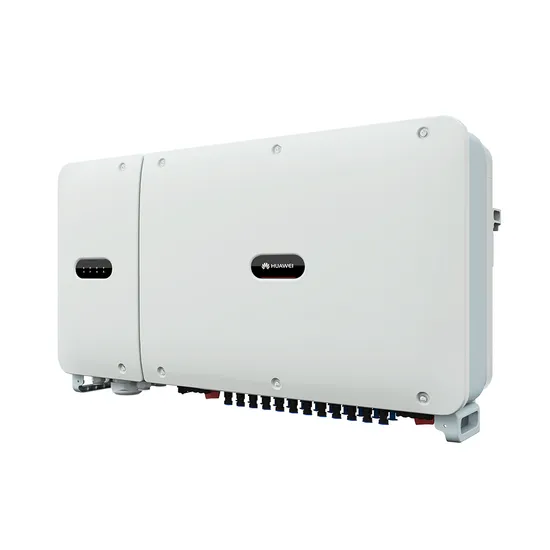

Huawei Sun 2000 Dc To Ac Grid-Tie Inverter 12Kw 15Kw 3 Phase On Grid Solar Inverters

US$999.00-59,980.00 1 Piece (MOQ)

Basic Info.

Model NO.

SUN2000-60KTL-M0

Nature of Source Flow

Active Inverter

Phase

Three

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Brand

Huawei

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Nature of Wave String

Sine Wave Inverter

Rated Grid Voltage(V)

220 V / 380 V, 230 V / 400 V, default 3W + N + PE;

Rated Grid Frequency(Hz)

50/60

Max. efficiency [%]

98.9

Operation Phase

Three

Input-side Disconnection Device

Yes

Anti-islanding Protection

Yes

AC Overcurrent Protection

Yes

DC Reverse-polarity Protection

Yes

PV-array String Fault Monitoring

Yes

DC Surge Arrester

Type II

AC Surge Arrester

Type II

DC Insulation Resistance Detection

Yes

Residual Current Monitoring Unit

Yes

Transport Package

Carton Package

Specification

1, 075 x 555 x 300mm(WxHxD)

Trademark

Huawei

Origin

China

HS Code

8504403090

Production Capacity

1000 Piece/Pieces Per Week

Packaging & Delivery

Package Size

108.00cm * 56.00cm * 20.00cm

Package Gross Weight

15.000kg

Product Description

Product Description
Smart Monitoring System
Technical specifications

Technical Specification	SUN2000 -12KTL-M0	SUN2000 -15KTL-M0	SUN2000 -17KTL-M0	SUN2000 -20KTL-M0
Efficiency
Max. efficiency	98.50%	98.65%	98.65%	98.65%
European weightedefficiency	98.00%	98.30%	98.30%	98.30%
Input (PV)
Recommended max. PV power	24,000 Wp	29,760 Wp	29,760 Wp	29,760 Wp
Max. input voltage	1,080 V
Operating voltage range	160 V ~ 950 V
Start-up voltage	200 V
Rated input voltage	600 V
Max. input current per MPPT	22 A
Max. short-circuit current	30 A
Number of MPP trackers	2
Max. number of inputs per MPPT	4
Output
Grid connection	Three phase
Rated output power	12,000 W	15,000 W	17,000 W	20,000 W
Max. apparent power	13,200 VA	16,500 VA	18,700 VA	22,000 VA
Rated output voltage	220 Vac/ 380 Vac, 230 Vac/ 400 Vac, 3W + N + PE
Rated AC grid frequency	50 Hz / 60 Hz
Max. output current	20 A	25.2A	28.5A	33.5A
Adjustable power factor	0.8 leading ... 0.8 lagging
Max. total harmonic distortion	≤3 %

Technical Specification	SUN2000-60KTL-M0	SUN2000-100KTL-M1
Efficiency
Max. efficiency	98.9% @480 V; 98.7% @380 V / 400 V	98.8% @480 V, 98.6% @380 V / 400 V
Europeanefficiency	98.7% @480 V; 98.5% @380 V / 400 V	98.6% @480 V, 98.4% @380 V / 400 V
Input
Max. Input Voltage	1,100 V	1,100 V
Max. Current per MPPT	22 A	26 A
Max. Short Circuit Current per MPPT	30 A	40 A
Start Voltage	200 V
MPPT Operating Voltage Range	200 V ~ 1,000 V
Rated Input Voltage	600 V @380 Vac/ 400 Vac; 720 V @480 Vac	720 V @480 Vac, 600 V @400 Vac, 570 V @380 Vac
Number of MPP trackers	6	10
Max. number of inputs	12	20
Output
Rated AC Active Power	60,000 W	100,000 W
Max. AC Apparent Power	66,000 VA	110,000VA
Max. AC Active Power (cosφ=1)	66,000 W	110,000 W
Rated Output Voltage	220 V / 380 V, 230 V / 400 V, default 3W + N + PE; 3W + PE optional in settings; 277 V / 480 V, 3W + PE	480 V/ 400 V/ 380 V, 3W+(N)+PE
Rated AC Grid Frequency	50 Hz / 60 Hz	50 Hz / 60 Hz
Rated Output Current	91.2 A@380 V, 86.7 A @400 V, 72.2 A @480 V	120.3 A @480 V, 144.4 A @400 V, 152.0 A @380 V
Max. Output Current	100 A@380 V, 95.3 A @400 V, 79.4 A @480 V	133.7 A @480 V, 160.4 A @400 V, 168.8 A @380 V
Adjustable Power Factor Range	0.8 leading... 0.8 lagging
Max. Total Harmonic Distortion	<3%
