Glazed Tile Roll Forming Machine Circular Arc Glazed Tile Roof Panel Roll Forming

Product Description

glazed tile roll forming machine circular arc glazed tile roof panel roll forming

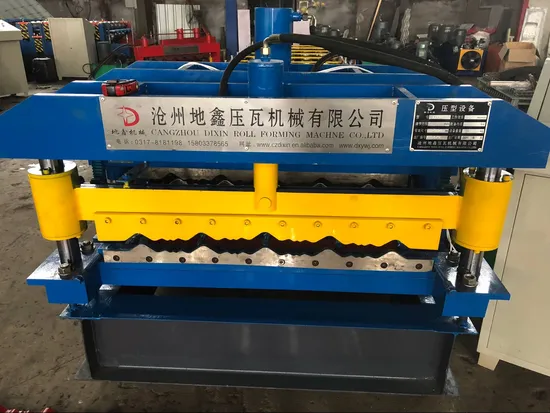

1.Machine Pictures( picture is just for your reference)
1.Specification:

No.	Item	Description
1	Raw material Standard	1000mm
2	Working Speed	1-3m/min (not including cutting time)
3	Roller Stations	13 stations
4	Material of Roller	45# steel quenching process and chrome coated
5	Material of Main Shaft	45 steel forged,
6	Material of Shaft	70 mm forged 45#steel, quenching process
7	Main Motor Power	4KW
8	Electrical Hydraulic Station Power	4KW
9	Hydraulic Station Pressure	12.0 Mpa
10	Electrical Control System	PLC Panasonic Japan
11	Dimension (L*W*H)	6500mm*1250mm*1300mm
12	Material of Cutter	Cr12 Mov HRC 58-62
13	Driving Mode	single chain 1 inch
14	Material Thickness	0.25-0.8mm
15	Cutting accuracy	±2mm
16	Power Supply	380V, 60HZ, 3 PHASES

2.Supply range:

No	Item	Qty	Remark
1	5 ton manual decoiler	1
2	roll forming machine	1
3	Hydraulic station	1
4	Electric cabinet	1
5	3m receiving table	2
6	Document	2	Operation manual
7	Spare parts	1 set

3.Equipment arrangement drawing(sample)

Company Introduce:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China
Our Service
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.

---
