Wireless Portable 17*17 Inch Digital X Ray Flat Panel Detector

Product Description

Product Description

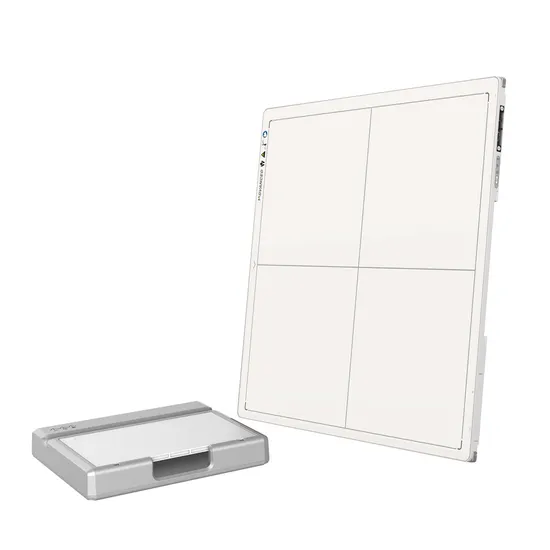

Mars 1717V 17*17 inch Wireless X ray Flat Panel Detector
Mars 1717V is a smart 17×17 inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.
Features
1. Wireless cassette detector per ISO 4090, fits in bucky
2. 139 μm pixel pitch, with 16 bit ADC for more image details
3. Direct deposition CsI for better image quality with lower dose
4. Stable iSync + Automatic Exposure Detection (AED)
5. Dual band (2.4 and 5 GHz) wireless support with easy sharing
6. Long battery life and smart workflow

Technical Specifications
Detector Technology	Amorphous Silicon
Scintillator	Csl
Active Area (inch)	17 × 17
Pixel Matrix	3072 × 3072
Pixel Pitch (um)	139
Spatial Resolution (lp/mm)	3.6
AD Conversion (bit)	16
Battery Autonomy (h)	8
WIFI	2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode	AED (Optional) 1 Software
Full Image Time (s)	5
Dimensions (mm)	460 x 460 x 15
Weight (kg)	4.6
Static Loading	150kg Uniformly
Ingress Protection	IPX1
Operating Temperature (°C)	5~35
Storage & Transport Temperature with Package (ºC)	-20 ~ 55
Operating Humidity (% RH)	10 ~ 90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH)	5 ~ 95 (Non-Condensing)

Clinical Images
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.

---
