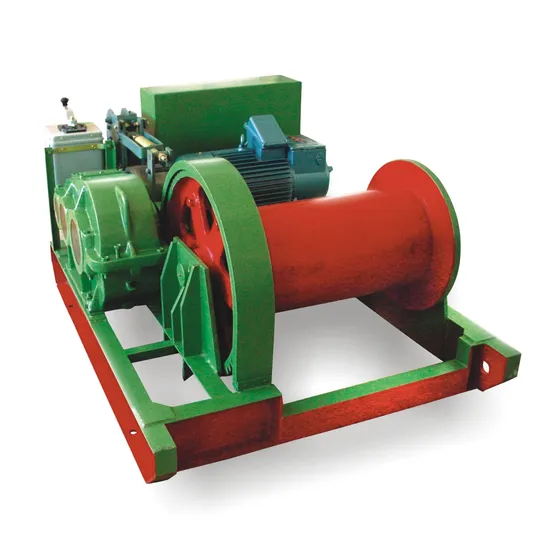

Factory Direct Low Speed Wire Rope Building Electric Windlass Cap. 3000kg

Product Description

Product Description

Features
The Fast Building Electric Winch Series can be mainly used in lifting, disassemble, moving and intalling points in construction companies, diggingsand workshop. This series windlass has strong pulling power. Steel cable is arranged in an orderly way, which is safe and reliable.
Product Parameters

Technical Parameters

Model		JM2	JM3	JM5	JM8	JM10
Cable pull (kg)		2000	3000	5000	8000	10000
Cable speed (m/min)		12	10	10	8	8
Wire rope( mm)		15.5	17	21.5	26	30
Reduction box	Type	JZQ350	JZQ350	JZQ400	JZQ500	JZQ650
	Transmission ratio	23.34	31.5	23.34	31.5	40.17
Drum (mm)	Diameter()	260	310	400	500	550
	Length	480	510	730	910	1020
Capacity(m)		150	180	180	250	300
motor	Type	Y160M-6	Y160M-6	YZR180L-8	YZR225M-8	YZR250M1-8
	Power(kW)	7.5	7.5	11	22	30
	Rotate speed(r/min)	970	970	685	715	720
Arrester		TJ2-200	TJ2-200	TJ2-300	YWZ-300	YWZ-300
Size(cm)		115 x100 x60	138 x106 x65	185 x135 x90	205 x275 x105	220 x180 x 110
N. W (kg)		630	680	1200	2500	3200

Detailed Photos
Company Profile

Company ProfileKaixun Group --- Zhejiang Kaixun Mechanical and Electrical Co., Ltd., which founded in 1998, is an export-oriented high-tech enterprise. We integrate R&D, production and sales into one body, and we are specialized in manufacturing various 380 items, including hoisting macchinery, financial equipments, electric winch, wlwctric truck, electric forklift and hydraulic car, etc.Our comapny locates at Wenzhou City, Zhejiang Province, China. We covers an area of 59000m², structure area 87000m², and owned 880 sets of production equipment, which includes 260 sets of testing instruments. We have the ability of output RMB1500 million every year.We aim to set up KAIXUN brand, creat top quality, offrt brst service and ensure customer satisfactory. We have passed the certification of ISO9001:2008 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.Now we have been exporting 90% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc. Over 120 countries and regions. Our products are highly praiised by our clients.
