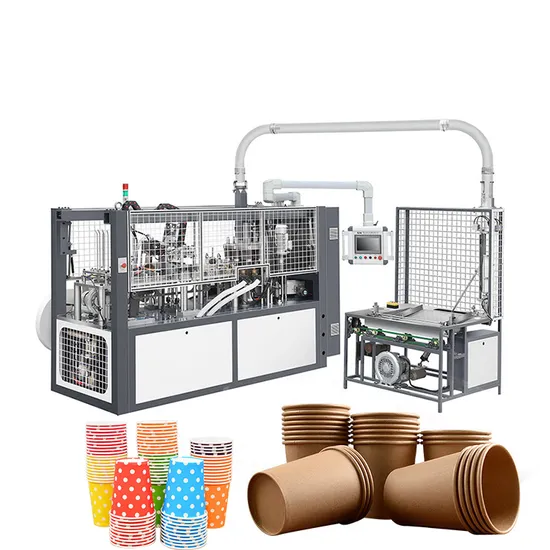

Fully Automatic Disposable Tea Coffee Paper Cup Making Machine Price

Product Description

Fully Automatic High Speed One Time Disposable Used Tea Coffee Paper Cup Making Machine Price Product Description Middle Speed Paper Cup Forming Machine:
Reliability:
Smart middle speed paper cup forming machine is provided with advantages of high performance,high efficiency and high quality.
The overall steel plate machine body and oil-spraying lubrication system ensures normal and stable long-term operation of the equipment. High Efficiency and Energy Conservation:
Advanced high-precision cylindrical cam driving unit working with gear drive system make sure the precisely working of every station.
Bottom paper feeding controlled by servo tracking system,and raw material paper can be saved effectively. Foreign technical and Made in China:
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported. User-friendly design:
The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
Product Parameters

Model	YG-DP09		YG-DP16
Paper cup size	3-9oz		3-16oz
Speed	70-90 pcs/min		70-90 pcs/min
Top Diameter	45mm(min)-82mm(max)		45mm(min)-90mm(max)
Bottom Diameter	35mm(min)-60mm(max)		35mm(min)-70mm(max)
Height	40mm(min)-85mm(max)		32mm(min)-135mm(max)
Raw material	160-350gram single pe film paper		150-350g/m2;±20g/m2
Configuration	Ultrasonic & Hot air system		Ultrasonic & Hot air system
Output	5.5KW,380V/50HZ		7kw,380v/50hz
Air compressor	0.4 M3/Min 0.5MPA		0.4 m3/min, 0.6-0.8mpa
Net weight	1600kg		2100kg
Dimension of machine	2200×1100 ×1950 MM		2200×1250×1900mm
Dimension of cup collector	900 ×600 ×1600 MM		900×600×1600mm

Features
Packaging & Shipping 1. Packaging:
Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
Company Profile
Our Advantages 1.We have 17 years manufacture and export experience.2.Exporting to all over the world,win high reputation among customers.3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.4.Near the Qingdao port convenient for exporting.5.Customer service staff 24 hours online,offer free technical support.6.Factory and Competitive Price we offer.7.Strong Research & Development technical team.8.Various machinery to meet all your needs at our factory.9.Engineers are available to guide the installation and take care of other problems.10.We offer OEM&ODM service to meet all your requirements.
FAQ 1.Q:Are you trading company or manufacturer?A:We are original equipment manufacturer.
2.Q:How long is your delivery time?A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?A:Yes,we could offer you the sample.But it's not free. You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.

---
