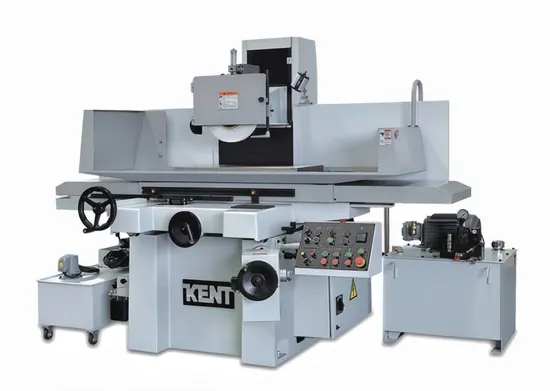

Kent 84 Ahd Series High Precision Process Three Axis Automatic Surface Grinding Machine

Product Description

Product Description
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Genral Specification
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Machine Equipment
A full-supported 1V1ffat structure design is adopted to the workbench, equipped with Turcite-B and a manual scraper to ensure excellent smooth operation and grinding acc

X-axis movement is hydraulic driven.
Automatic central lubrication
- Independent Hydraulic System,Avoid the impact of vibration on the machine.
- The automatic down-feed gearbox is designed to achieve ffne and accurate down-feed increments.
- The ffanged cartridge type spindle is supported by P4 super precision angular contact ball bearings.

- Magnetic separator with 80L tank for effective cooling and rinsing. (Optional)
- KENT electro magnetic chuck.
Power supply = DC 110 volt, Single-phases, 50 Hz /60 Hz.
- KENT Y&Z axis digimatic gage.(Optional)
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Standard Equipment
Consisting of:

Granding Wheel Flange	Flange Removal Tool	Balance Table
Balance Rod	Grinding Wheel (Φ355*38*Φ127)	Tool Set
Machine to Adjust Sizing Block	Complete Document	Acceptance report According to DIN 8632

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
racy under load. Product Parameters

Granding Range	mm	800*400
Cross Travel	mm	450
Longitudinal Travel	mm	910
Size of Electro-Permanent Chuck	mm	800*400
Distance Table to Spindle Center	mm	600
Table Lode incl. Magnetic Chuck	kg	700
Longitudinal Table Speed	m/min	5~28
Infeed Cross Axis (50Hz / 60Hz)	mm/min	1000/1200
Infeed Vertical Axis (50Hz / 60Hz)	mm/min	240/300
Grinding Wheel Dimensions	mm	Φ355*38*Φ127
Grinding Spindle Drive	hp(kW)	7.5(5.6)
Variable Speed of Grinding Spindle Motor	rpm	1500/1800
Machine Weight	kg	2800
Floor Space	mm	3600*2600

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Company Profile
About Our Company:
KENT Industry, the global leader of precision grinding machine, was founded in 1966, and always adheres to the business beliefs of 'technology', 'innovation' and 'reliability'. Over the years, continuous research and development, innovation and improvement have created a new era for the machincry industry of Taiwan. The main products include surface grinder, CNC surface grinder, gantry-type surface grinder, cylindrical grinder, disc grinder, vertical machining center, gantry-type machining centers, etc. The products are sold all over the world. So far, morc than 150,000 machinc tools havc bccn sold all over the world and applied by various enterprises. KENT Industry adheres to the spirit of carrying on the past heritage and opening up the future, forging ahead into the future with ingenious precision design and increasingly better craftsmanship, as well as the introduction of digital technology managemcnt to bccome a happiness enterprise with an intelligent factory.
KENT Machinery Co.,Ltd. is a wholly-owned company established in the National Hangzhou Xiaoshan Economic and
Technological Development Zone by KENT Industrial Group, a
world-renowned brand KENT with more than 50 years of professional machine tools manufacturing in Taiwan.
KENT adheres to the business philosophy
'technology, innovation, and reliability' of the parent
company, the quality policy of 'customer benefit', and the
mission of 'providing high-quality products and
participating in the cconomic construction of China' for
the industrial development of China. Zhejiang KENT
Inherits the ingenious precision design and increasingly
refined manufacturing process of the parent company,
more than 30,000 KENT machine tools have played an
important role in the Chinese industrial market and
successfully won the trust of customers.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Our Advantages
Why Choose US ? .......

Since 1996, KENT focusing on producted High Efficiency, High Cost Performance and High Production Value suface grinding machine and more for 60th........
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q1:Can we visit your factory before order?A: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick you up at the station or airport if needed .
Q2:What's your main products of your company?A: We specialized in all kinds of machine tools,such as Surface Grinding Machine, CNC, Milling machine, Lathe Machine,Lathe Feeder Machine and so on.Q3:Can you provide customized machines?A: Yes, we can design and manufacture according to your specific requirements.Q4:Do you have professional engineers?A: Yes,we have professional engineers and designers.Q5: Does your company provide professional training?A: Yes, we provide training and teaching or use video teaching.Q6:How can I choose the most suitable machines?A: You can contact our customer service, and please provide your product details and requirements, then we will help you choose the most suitable machine based on your information.Q7:What is your terms of delivery?A: FOBQ8:What is your terms of payment.A:TIT 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.Q9:How about your delivery time?A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q10: Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q11:Can you provide product samples?A: Yes, we can provide samples according to the drawings, but the customer needs to pay for the cost of the samples.Q12:What industry are your machines used in?A:Automobile parts industry,Electronic Equipment Industry, Home appliance industry, and so on.

---
