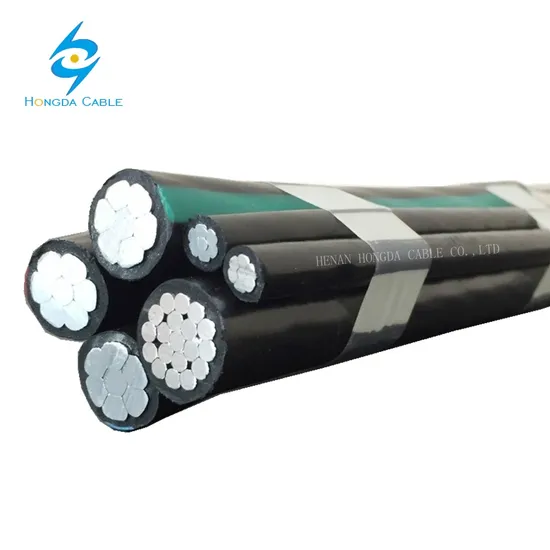

Aerial Bundled Cable Self-Supporting Insulated Wire SIP-2 3X35+1X50+2X25

Product Description

Aerial Bundled ABC cable Self-supporting insulated wire SIP-2 3X35+1X50+2X25
Wire (CIP) is a self-supporting insulated wire designed for use in overhead power lines (PTL) with suspension on supports or facades of buildings and structures.
Wire design (SIP):
1. A phase conductor of aluminum, stranded, sealed.
2. Zero bearing core made of aluminum alloy ABE or steel-aluminum, stranded, sealed. H. Insulation consists of light-stabilized polyethylene (XDPE).
Advantages of SIP:
~ with equivalent investments, power transmission lines with FIC require lower operating costs;
~ the possibility of joint suspension on the supports of wires with different voltage levels and with telephone lines;
~ reduction of safe distances to buildings and other engineering structures (electrical, telephone, overhead lines);
~ height above ground level - 4 meters, for uninsulated wires - 6 meters;
~ the possibility of a short circuit between the wires of the phases or to earth is excluded;
~ eliminating the risk of fire in the event of a wire falling to the ground;
~ high safety of service - no risk of damage due to contact of live phase wires;
~ lighter weight and longer duration of snow sticking, increased reliability in areas of intense icing, reduced wind loads on supports;
~ decrease in voltage drop due to low reactance;
~ reduction of emergency recovery work;
~ simplicity of repairs, especially when working under voltage, reducing the likelihood of electricity theft and destruction of power lines, safety of work near power lines.
1.3 Classification:
Low Voltage Cable Aerial Bundled Conductor, Twisted Cable Number of cores x nominal cross section max. conductor- resistance min. breaking load of conductor strand Current rating in the air Outer diameter Total weight mm^2 Ohm/km kN A mm kg/km

2x10 mm2	3.080	1.5	38	12.8	93
4x10 mm2	3.080	1.5	38	15.4	183
2x16 mm2	1.910	2.3	72	14.8	129
2x16+2x1.5 mm2	1.910/12.100	2.3	72	14.8	176
4x16 mm2	1.910	2.3	72	17.8	257
4x16+2x1.5 mm2	1.910/12.100	2.3	72	17.8	304
2x25 mm2	1.200	3.8	107	18.0	202
2x25+2x1,5 mm2	1.200/12.100	3.8	107	18.0	249
4x25 mm2	1.200	3.8	107	21.7	404
4x25+2x1,5 mm2	1.200/12.100	3.8	107	21.7	451
2x35 mm2	0.868	5.2	132	20.8	269
2x35+2x1,5 mm2	0.868/12.100	5.2	132	20.8	316
4x35 mm2	0.868	5.2	132	25.1	539
4x35+2x1,5 mm2	0.868/12.100	5.2	132	25.1	586
2x50 mm2	0.641	7.6	165	23.4	352
2x50+2x1,5 mm2	0.641/12.100	7.6	165	23.4	399
3x25+1x50 mm2	0.630/1.200	3.8	107	21.7	507
3x25+1x50+1x16 mm2	0.630/1.200/1.910	3.8/2.3	107/72	24.3	573
3x25+1x50+2x16 mm2	0.630/1.200/1.910	3.8/2.3	107/72	29.7	639
3x25+1x50+3x16 mm2	0.630/1.200/1.910	3.8/2.3	107/72	31.1	705
3x35+1x50 mm2	0.630/0.868	5.2	132	25.1	615
3x35+1x50+1x16 mm2	0.630/0.868/1.910	5.2/2.3	132/72	28.1	680
3x35+1x50+2x16 mm2	0.630/0.868/1.910	5.2/2.3	132/72	34.3	748
3x35+1x50+3x16 mm2	0.630/0.868/1.910	5.2/2.3	132/72	35.9	814
3x35+1x50+1x25 mm2	0.630/0.868/1.200	5.2/3.8	132/107	28.1	714
3x50+1x50 mm2	0.630/0.641	7.6	165	28.2	741
3x50+1x50+1x16 mm2	0.630/0.641/1.910	7.6/2.3	165/72	31.6	806
3x50+1x50+ 2x16 mm2	0.630/0.641/1.910	7.6/2.3	165/72	38.6	875
3x50+1x50+3x16 mm2	0.630/0.641/1.910	7.6/2.3	165/72	40.4	940
3x50+1x50+1x25 mm2	0.630/0.641/1.200	7.6/3.8	165/107	31.6	841
3x70+1x50 mm2	0.630/0.443	10.2	205	33.0	950
3x70+1x50+1x16 mm2	0.630/0.443/1.910	10.2/2.3	205/72	37.0	1014
3x70+1x50+2x16 mm2	0.630/0.443/1.910	10.2/2.3	205/72	45.2	1083
3x70+1x50+3x16 mm2	0.630/0.443/1.910	10.2/2.3	205/72	47.3	1148
3x70+1x50+1x25 mm2	0.630/0.443/1.200	10.2/3.8	205/107	37.0	1048
3x70+1x50+2x25 mm2	0.630/0.443/1.200	10.2/3.8	205/107	45.2	1150
3x70+1x50+3x25 mm2	0.630/0.443/1.200	10.2/3.8	205/107	47.3	1250
3x95+1x50 mm2	0.630/0.320	13.5	240	37.4	1176
3x95+1x50+1x16 mm2	0.630/0.320/1.910	13.5/2.3	240/72	41.9	1243

other cross-sections on request

Physical Properties
Cable size	Insulation Thickness			Approx Maximum Diameter			Approx. Net. Weight	Standard Length
	Phase	Neutral / Messenger	Public Lighting	Phase	Neutral/Messenger	Public Lighting
mm2	mm	mm	mm	mm	mm	mm	kg/km	m
2X25+25	1.4	1.4	-	10.0	10.0	10.0	338	500
2X35+25	1.6	1.4	-	11.2	10.0	10.0	394	500
2X50+35	1.6	1.6	-	12.6	11.2	11.2	526	500
2X70+50	1.8	1.6	-	15.4	12.6	12.6	760	500
2X95+70	2.0	1.8	-	17.0	15.4	15.4	975	500
3X25+25	1.4	1.4	-	10.0	10.0	10.0	452	500
3X35+25	1.6	1.4	-	11.2	10.0	10.0	537	500
3X50+35	1.6	1.6	-	12.6	11.2	11.2	717	500
3X70+50	1.8	1.6	-	15.4	12.6	12.6	1057	500
3X95+70	2.0	1.8	-	17.0	15.4	15.4	1360	500
3X25+25+2X16	1.4	1.4	1.2	10.0	10.0	8.1	602	500
3X35+25+2X16	1.6	1.4	1.2	11.2	10.0	8.1	687	500
3X50+35+2X16	1.6	1.6	1.2	12.6	11.2	8.1	867	500
3X70+50+2X16	1.8	1.6	1.2	15.4	12.6	8.1	1207	500
3X95+70+2X16	2.0	1.8	1.2	17.0	15.4	8.1	1510	500
3X25+25+16	1.4	1.4	1.2	10.0	10.0	8.1	527	500
3X35+25+16	1.6	1.4	1.2	11.2	10.0	8.1	612	500
3X50+35+16	1.6	1.6	1.2	12.6	11.2	8.1	792	500
3X70+50+16	1.8	1.6	1.2	15.4	12.6	8.1	1132	500
3X95+70+16	2.0	1.8	1.2	17.0	15.4	8.1	1435	500

For more information, don't hesitate to contact us on +86-15838290725.

---
