2540 Vertical Inflatable Double Glass Making Machine Line Argon Gas Filling Machine

Product Description

Product Description

1.Introduction of 2540 Vertical Inflatable Double Glass Making Machine Line Argon Gas Filling Machine
Insulating Glass Argon Filling Machine Glass Insulating Machine is our patent products, we adopts the top technology of side filling way, which greatly improves the inflation effect and efficiency. Ensuring the double glazing glass argon gas concentration is kept at 90%, even reach 98% for small glasses.
We have developed two working methods, one is suitable for all glass for filling, and the other is suitable for half of insulated glass. Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time.

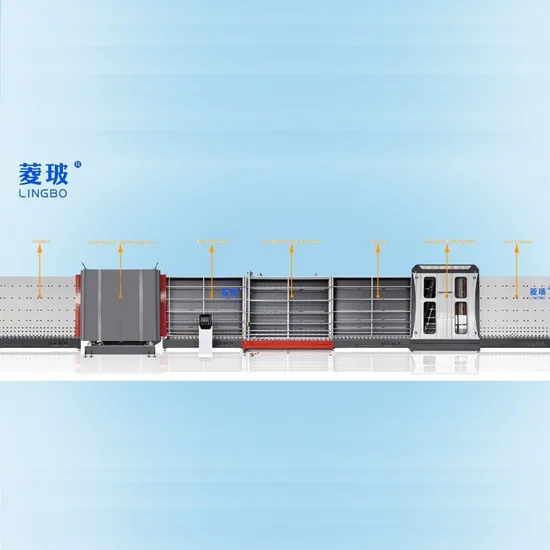

The 2000mm Full Automatic Insulating Glass Silicone filling Machine Price includes the loading section, washing and drying section, transportation section, high speed positioning & Aluminum spacer mounting section, detecting section, inside press and filling section, transportation section connecting the sealing robot, totally seven sections.
According to the automatic detection results, the argon gas filling machine line will choose the suitable filling ways. For big size of more than 2 meters, two filling machine is working, and for smaller size of glass, then only one filling machine is working.
It can be working with stepped glass, or three-sided glass, or the three glass with two chambers according to different client requirements.
Product Parameters
2.Technical Parameter of 2540 Vertical Inflatable Double Glass Making Machine Line Argon Gas Filling Machine

Model	Max glass	Min glass	Glass Thickness	Washing speed	Transport glass speed	Insulated glass thickness	Spacing Dimension L*W*H	Gas Filling way	Gas Filling Amount-Average
CQX 2000*2500	2000*2500 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	18.5*2.5*3.05	Inside filling	90%
CQX 2000*3000	2000*3000 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	23.5*2.5*3.05	Inside filling	90%
CQX 2500*3100	2450*3150 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	23.5*2.5*3.55	Inside filling	90%
CQX 2500*4000	2450*3950 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	30.5*2.5*3.55	Inside filling	90%
CQX 2700*4000	2650*3950 mm	300*500 mm	3-12 mm	0-12 m/min	45 m/min	10-48 mm	32*2.5*3.80	Inside filling	90%
Notes: a. if you have special glass size, please note us, we can design the line for you; b. If you have special power supply, please note us earlier as well, we can specially make the line for you.

Our Advantages
3. About Our Factory
Our company is the only high-tech enterprise in Shandong Province in the glass processing industry, specially Factory Sell CNC Automatic Glass Filling and Sealing Line, enjoying a series of favorable policies such as national finance and taxation; We have our own independent R&D team, especially employing field top Korean experts, having more than twenty patent certificates.
4. Configuration Sheet of 2540 Vertical Inflatable Double Glass Making Machine Line Argon Gas Filling Machine

PROJECT NAME	BRAND	COUNTRY of ORIGIN
Programmable PLC	SIEMENS	GERMANY
Frequency converter	SIEMENS	GERMANY
AC contactor	LS	KOREA
Low-E Glass Recognizer	OPTEX	JAPAN
Intermediate relay	HONEYWELL	USA
Breaker	LS	KOREA
Photoelectric Sensor	OMRON	JAPAN
Proximity Sensor	AUTONICS	KOREA
Pneumatic Solenoid valve	AIRTAC	TAIWAN
Pneumatic Cylinder	AIRTAC	TAIWAN
Servo Motor & Servo Driver	SIEMENS	GERMANY
Low-E Glass Recognizer	OPTEX	JAPAN
Argon inflatable switch solenoid valve	AirTAC	TAIWAN
Pressure Switch	SMC	JAPAN
Press machine Ball screw	HIWIN	TAIWAN
linear guide	HIWIN	TAIWAN

FAQ

5.FAQ on 2540 Vertical Inflatable Double Glass Making Machine Line Argon Gas Filling Machine
Q: we are first time to hear your brand, Are you NEW to this glass process filed?
A: We are factory built 2014, we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: What's the guarantee for the Argon Gas Filling Machine?
A: 1. Our guarantee for 12 months.
2.24 hour's technical support by email or calling.
3.English manual and video teaching.
4.We will provide the consumable parts at an agency price.
5.24 hours on line service each day, free technical support.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport or train station.
