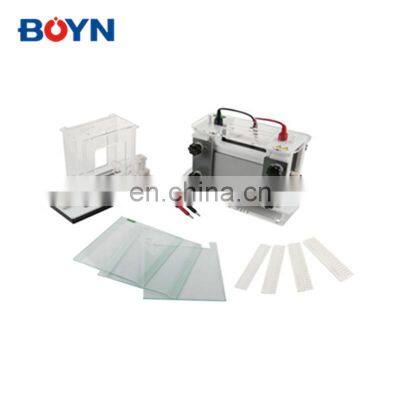

JY-SCZ8 protein purification&analysis Vertical gel electrophoresis tank

Product Description

Product Description
JY-SCZ8 protein purification&analysis Vertical gel electrophoresis tank
JY-SCZ8
Features:
• Intended for protein purification and analysis, ideal for the dimensional electrophoresis, DGGE and preparative gel electrophoresis.
• Equipped with special processing technology aluminums plates, effectively guaranteed the heat dissipation more even, holding stable pH during electrophoresis running.
• Non-proliferation electric field influence, guaranteed the electrophoresis strip more clear and straight. Modular double hinged core cassettes, matched with the basing gel caster, ensuring the whole operation process more convenient.
• Retractable connectors compatible with most major power supplies.
• For the temperature control,JY-SCZ8 can be connected with a outer constant temperature circulator.
• Safe operation design, power can be cut off automatically when remove the lid.
Specifications
Model:JY-SCZ8
Technical Specification:
Gel Size(W×L)mm: 173×195
Gel thickness;1,1.5(mm)
Comb wells;21, 35
Gel capacity: 2
Buffer requirement: 2200(ml)
Characteristic features
• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With the gel making device modular, you can make multi slab gel at the same time.
• Safety cover open button design, convenient opening the cover.
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
Specifications
Model:JY-JX5
Technical specifications
Glass plate size(W×L):216×110 mm
Gel Size(W×L):186×95 mm
Gel thickness: 1.0(mm)
Gel amount:1~2(pieces)
Sample volume:(1.0mm)25,40,52wells
Buffer Volume:~1800(ml)
Dimension(L×W×H):280×140×135(mm)
Net weight:3.2(kg)

Features:
• Intended for protein purification and analysis,ideal for the dimensional electrophoresis,DGGE and preparative gel electrophoresis.
Equipped with special processing technology aluminums plates,effectively guaranteed the heat dissipation more even,holding stable pH during electrophoresis running.
•Non-proliferation electric field influence,guaranteed the electrophoresis strip more clear and straight.Modular double hinged core cassettes,matched with the basing gel caster,ensuring the whole operation process more convenient.
• Retractable connectors compatible with most major power supplies.
For the temperature control,JY-SCZ8 can be connected with a outer constant temperature circulator.
• Safe operation design,power can be cut off automatically when remove the lid.
Specifications
Model:JY-SCZ9
Technical Specifications:
Gel Size(W×L)mm: 120×145
Gel thickness;1,1.5(mm)
Comb wells;16, 23
Gel capacity: 2
Buffer requirement: 1200(ml)
