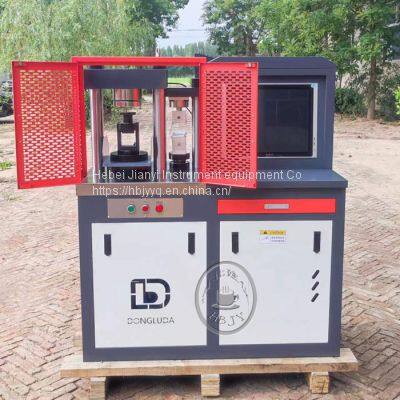

Cement anti bending and compression machine full automatic pressure testing machine

Product Details

Product Description

Product Description

technical parameter
Name: compressive part and flexural part
Maximum load: 300KN 10kN
Relative error of indication value ≤± 1% ≤± 1%
Piston diameter x maximum stroke Φ one hundred and twenty-five Х 100mm Φ sixty Х 50mm
Pressure plate diameter Φ one hundred and sixty Φ one hundred
Distance between pressing plates: 200mm
Loading speed: 0-10kn / S; 0-100n / S
Test force measurement range: 4% - 100%
Error of applied test force: ± 1%
Input voltage: 380V
Motor power: 0.75kw
Overall dimension (mm): 1220 * 510 * 1280mm
Main engine weight: 300kg

---
