Serial number 810501338 model XX - 5 M

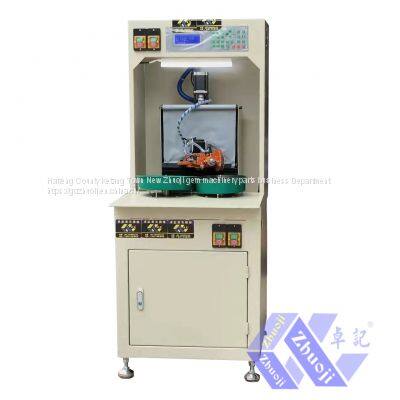

The automatic Angle machine can polish the plane carving of the mixed stone egg-shaped ring surface. The number of layers can be processed is seven, and each layer has 16 plates.
Principle: install 5 stepper motors, 5 drivers, 5 sensors.A mechanical arm for positioning and repositioning by transverse pull;
Operation process:
Mode selection: there are 10 types of processing data built in for storing and exporting. Enter according to the window prompt, and the selected mode number is the current processing or programming storage number.
2. The number of layers and plates: namely, the number of layers of processed stones (with 7-10 layers) and the number of processed plates (with 16 plates in each layer), such as circular plane 8-8-16 programming.The number of layers is input as 3, namely 3 layers. The first layer has 8 layers, then 1=8; the second layer has 8 layers, then 2=8; the third layer has 16 layers, then 3=16.
3. Angle and Angle setting: their layers, each plate manipulator stepper motor Angle numerical programming (note: each step motor running a circular number representation to 3200, namely, their Numbers for 1 0.1125 degrees, the following when programming. The numerical based on). : after entering the layers menu, Angle Angle was on behalf of the board, 1-15 said for 2 to 16
Four: machinist pitch Angle setting: the Angle of the manipulator and cd-rom programming each level, according to the processing of shape, after entering the layers menu, : according to A, B key to choose ze layer, layer number, press * confirm programming according to A, B key rapid adjustment, according to the C, D: key fine-tuning, specific to the specific shape processing parts. 5. Playing sand height Settings: namely the mechanical processing of their height, after entering the menu, press AB choose ze layer number, press the * key to confirm programming layer number, press B A quick adjustment, C, D key fine-tuning, concrete generally will be subject to stone plate. But the specific situation will be subject to specific shape processing parts.
Suitable for: corundum, spinel, ruby, turquoise, olivine, topaz/topaz, sapphire, tourmaline/tourmaline, garnet, agate, amber, tiger eye, zircon, glass
Shape: round, oval, square, rectangle, triangle, pear shape, heart shape, water drop shape, horse eye shape, plum shape, star, leaf shape, axe shape, solid beads, solid water drop, solid triangle square ring face, egg ring face, pear ring face, etc
Accessories: diamond forming disc/polishing disc/polishing powder
Technical parameters:
/Voltage: /AC220V
Motor Power /Power: 180W
Natural speed: 2800r/min
The biggest plate size:8
Quantity offlat: the number of milled layers is seven, with 16 surfaces in each layer
Dimension: length 560mm× width 800mm× height 1390mm
>>
