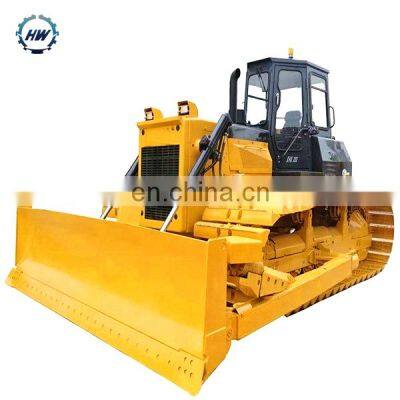

HW-TT-16MSswamp bulldozer-Suitable for soft wetlands
HD16MS super-wetland hydraulic transmission bulldozer is configured with Weichai engine,it is developed in response to the operation demands of swamp and wetland conditions, and the special design ensures higher operating efficiency.
1.The appearance of the vehicle is based on optimization design.
2.The super-wide triangular tracks take advantage of lower ground pressure and can prevent the entrapment of machine during operations in soft material sites,such as soft soil, wetland, and swamp.
3.High engine power reserve with strong torque output and low fuel consumption, reliable controls
4.The standard straight tilting blade features powerful cutting force ,high working efficiency and super-strong penetrating force.
5.The updated hexahedral cab features outstanding visibility and good tightness.
6.The use of internationally renowned transmission device and China's best diesel engine brand, quality assurance for life.
Parameters
Main Specifications
|
Operating Weight
| 18300 kg
|
Overall Dimenssions
| 5256×4153×3130 mm
|
Blade type
| Straight-tilt
|
Dozing capacity
| 3.85 m3
|
Blade width
| 4150 mm
|
Blade height
| 960 mm
|
Blade max.drop below ground
| 488 mm
|
Blade max.tilt adjustment
| 730mm
|
Grade ability
| 30°
|
Engine
|
Model
| Weichai WP10G178E355
|
Rated Power
| 131/1850 Kw/rpm
|
Cylinder number-bore×stroke
| 6-126×130mm
|
Piston displacement
| 9.726L
|
Mini fule consumption
| 214g/kw.h
|
Max torque
| 830/1000-1200 N.m/rpm
|
Cooling Type
| Water
|
Power transmitting system
|
Main clutch type
| wet,multi-disc,inertia,brake,hand operate,hydraulic booster
|
Transmission
| Forced lubrication, hand operate
|
Main drive
| Spiral bevel gear, single stage speed reduction,splash lubrication
|
Steering clutch
| Wet multi-disc,spring loaded, hand hydraulically seperated, inter-linking with steering brake
|
Steering brake
| Wet banding structure, footbrake, hydraulic booster
|
Final drive
| Two-stage reduction of spur gear,splash lubrication
|
Undercarriage system
|
Undercarriage system
| 4
|
Number of track rollers
| 14
|
Width of track shoes
| 1100mm
|
Min.ground clearance
| 492 mm
|
Ground pressure
| 0.026 Mpa
|
Track gauge
| 2300 mm
|
Number of track shoes
| 44
|
Pitch
| 203.2mm
|
Forward(km/h)
| 2.67/3.76/5.41/7.62/11.13 km/h
|
Reverse(km/h)
| 3.48/4.9/7.05/9.92 km/h
|
Hydraulic system
|
ure
| 14MPa
|
Pump type
| gear pump
|
Discharge
| 227L/min
|
Working cylinder×number
| 110mm×2
|
Detailed Images
Related Products
HW-TT-16MS
USD 75385~84615Operating Weight:18300 kg
Dozing capacity:3.85 m3
Engine:
Weichai 131/1850 Kw/rpm
Piston displacement:9.726L
Max torque:
830/1000-1200 N.m/rpm
Mechanical / wetland
HW-TT-16
USD 71885~78464
Operating Weight:17000 kg
Dozing capacity:4.55 m3
Engine:
Weichai 131/1850 Kw/rpm
Piston displacement:9.726L
Max torque:
830/1000-1200 N.m/rpm
Hydraulic / dry land
HW-TT-22
USD 114615~123076
Operating Weight:23500 kg
Dozing capacity:6.4 m3
Engine:
Cummins 162 Kw
Max pressure:14Mpa
Discharge:262L/min
Max tractor force:202KN
Hydraulic / dry land
HW-TT-32
USD 163077~178456
Operating Weight:37200 kg
Dozing capacity:10 m3
Engine:
Cummins 235 Kw
Max pressure:14Mpa
Discharge:335.5L/min
Max tractor force:280KN
Hydraulic / dry land
Accessories & Option
1.Three-tooth soil opener
2.Winch
3.The rolling shelf
4.The air conditioning
5.Angle shovel/u-shaped shovel
6.Centralized lubrication
