US$300.00-600.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
EG-12/EG-16/EG-25
Processing Object
End Mill
Controlling Mode
Artificial
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Applicable Flutes
2 Flutes,3 Flutes,4 Flutes
Transport Package
Carton or Wooden Box
Specification
536*424*415MM
Production Capacity
60000 Pieces / Year
Product Description

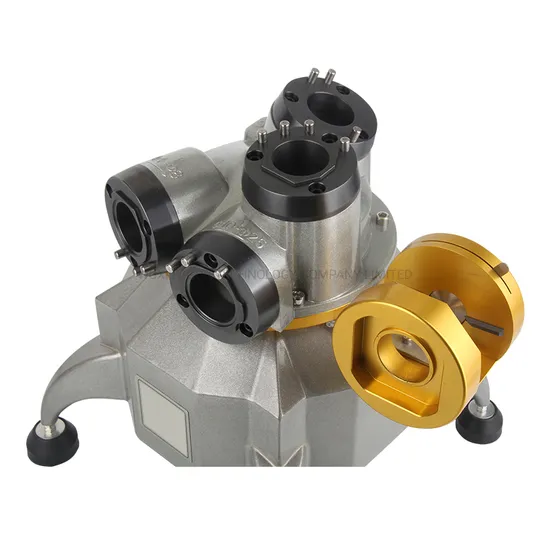

Model | EG-12/EG-16/EG-25 |
Applicable diameter | ø3~ø12/ø3~ø16/ø4~ø25 |
Applicable flutes | 2 flutes,3 flutes,4 flutes |
Axial angles | Secondary clearance angle 3°;Primary relief angle 20°;End gash angle 30° |
Grinding wheel | SDC,CBN |
Power | 220V+10%AC |
Rated speed | 6000rpm |
Power | 400W/400W/600W |
Dimension | 400*360*330mm |
Weight | 15kg |
Company ProfileWuxi Fagor Technology Co.,Ltd.is specialized in CNC machine tools accessories .The main products of our company are 4 axis rotary table,5 axis rotary table,water pump, chuck, coupling, end mill grinder,chipping machine,cutter barrel,three-color lamp,knife tower and other accessories With high precision and full varieties are deeply trusted and appreciated by customers.At the same time we have a strong sales team and experienced core service team.we are ready to provide CNC machine tool accessories one-stop solution for you,looking forward to cooperating with you and going to a win-win situation.
FAQ
Q: How long is the quality guarantee?
A: One year guarantee.
Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.
Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.
>>
